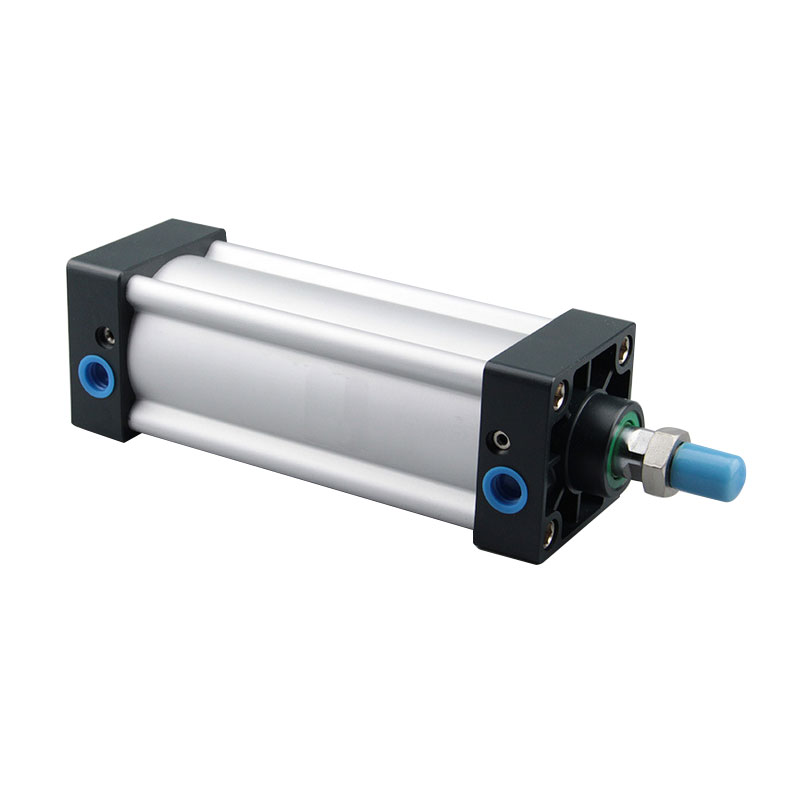

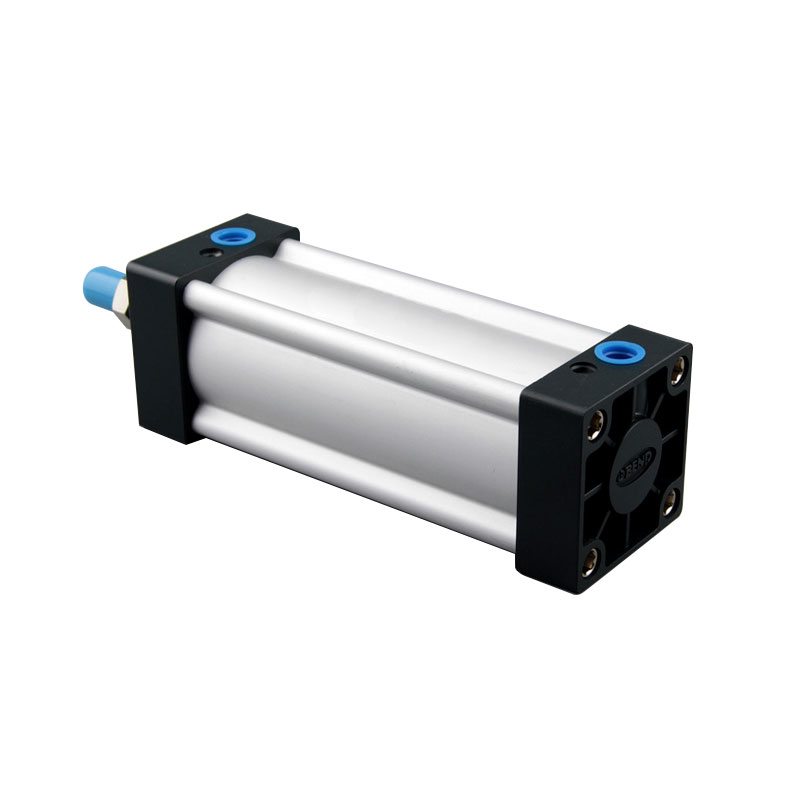

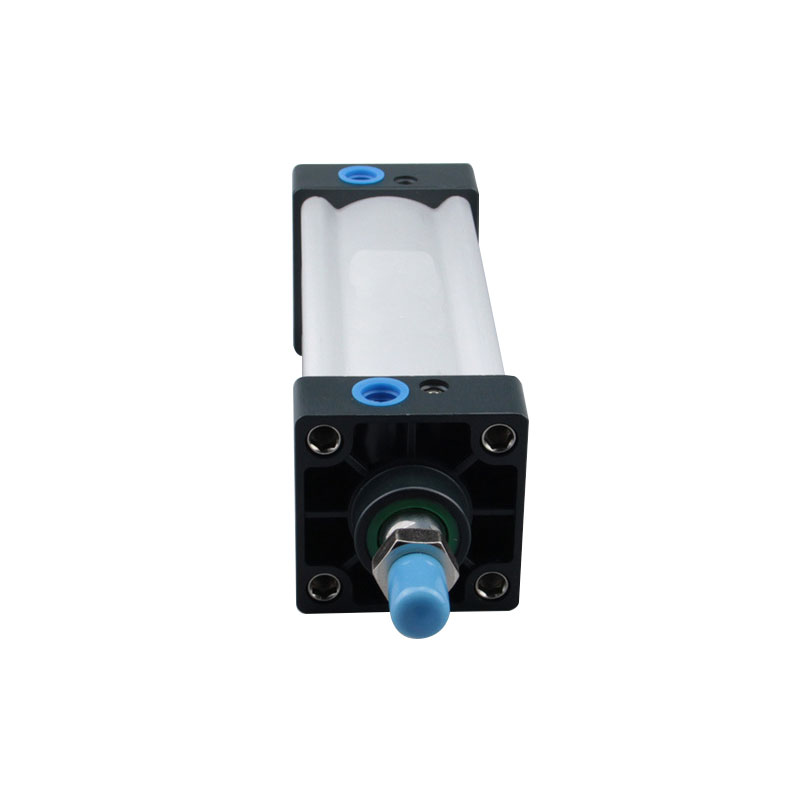

Overview for SU Standard Cylinder
SU Standard Cylinder's action type is double acting type; buffer type is adjustable buffer, buffering adjustment is stable; can choose high-temperature sealing material, high-temperature resistance. The installation and fixing forms are various, including front double-eared, single-eared, double-eared, front flange, rear flange and prop stand type.
SU Standard Cylinder piston adopts special-shaped two-way sealing structure, compact size, with oil storage function; the profile of cylinder tube is aluminum tube double-cross-shaped type which can hide the rod, the rod is built-in and has good corrosion resistance; compared with ISO15552 Standard Cylinder, the length of SU Standard Cylinde with the same bore is shorter.
1. Free lubrication: oil-containing bearings are used to make the piston rods need no lubrication;
2. Adjustable cushioning: In addition to the fixed cushioning, the SU cylinder terminal also has adjustable cushioning, so that the cylinder is stable and no impact when reserving;
3. High-temperature resistance: SU Standard Air Cylinder adopts high-temperature sealing materials, so that the cylinder can work normally at 150℃;
4. Installation diversity: A variety of installation accessories for customers to choose;
5. Magnetic: The SU Standard Air Cylinder piston is equipped with a permanent magnet that triggers an inductive switch mounted on the cylinder to sense the motion position of the cylinder.
The installation accessories of SU Standard Air Cylinder are shared with SC series standard cylinders. It can be customized with special specifications.
