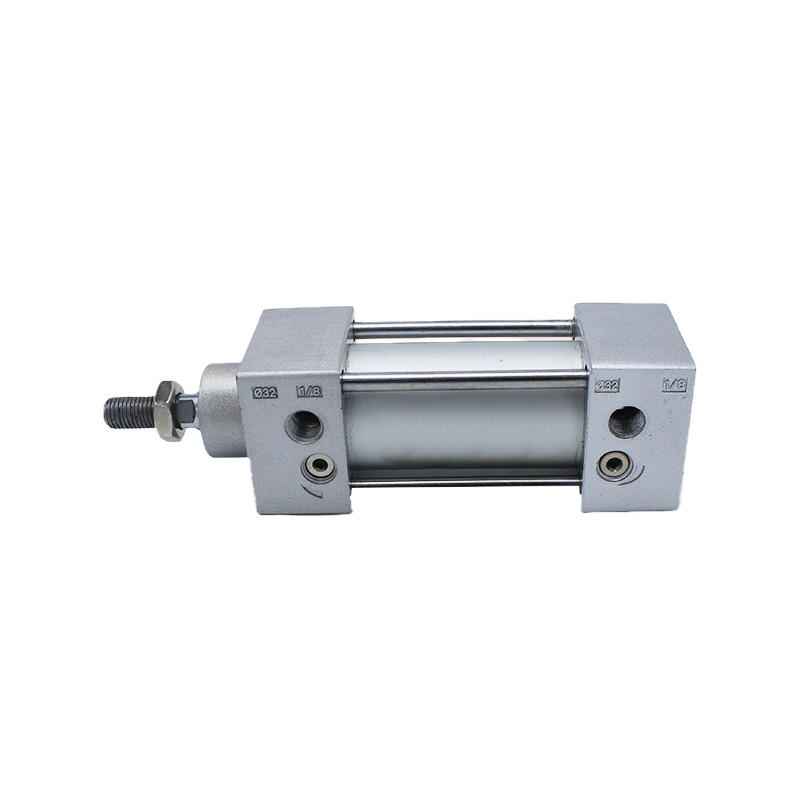

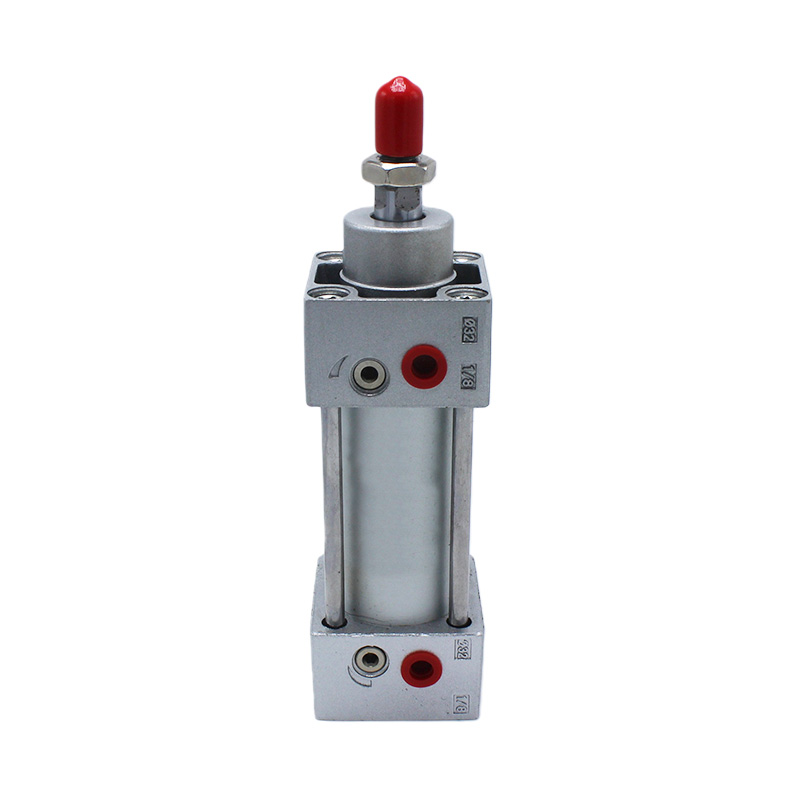

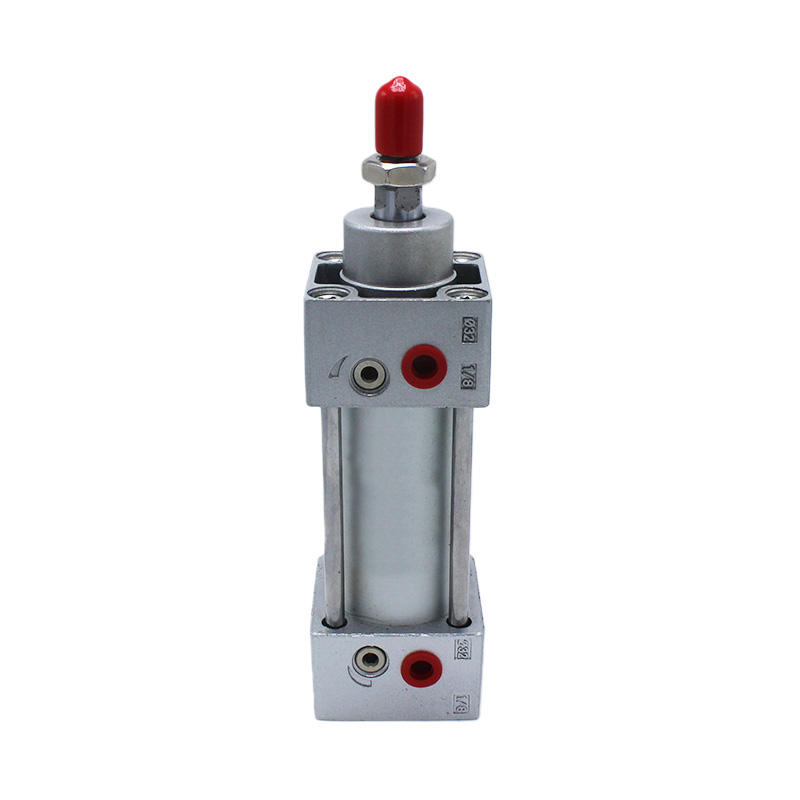

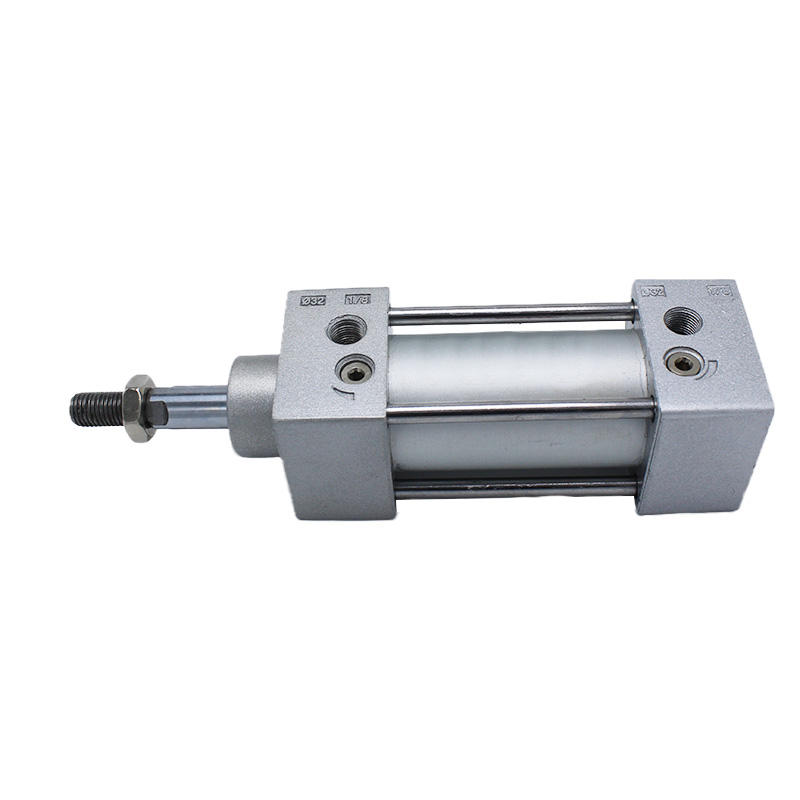

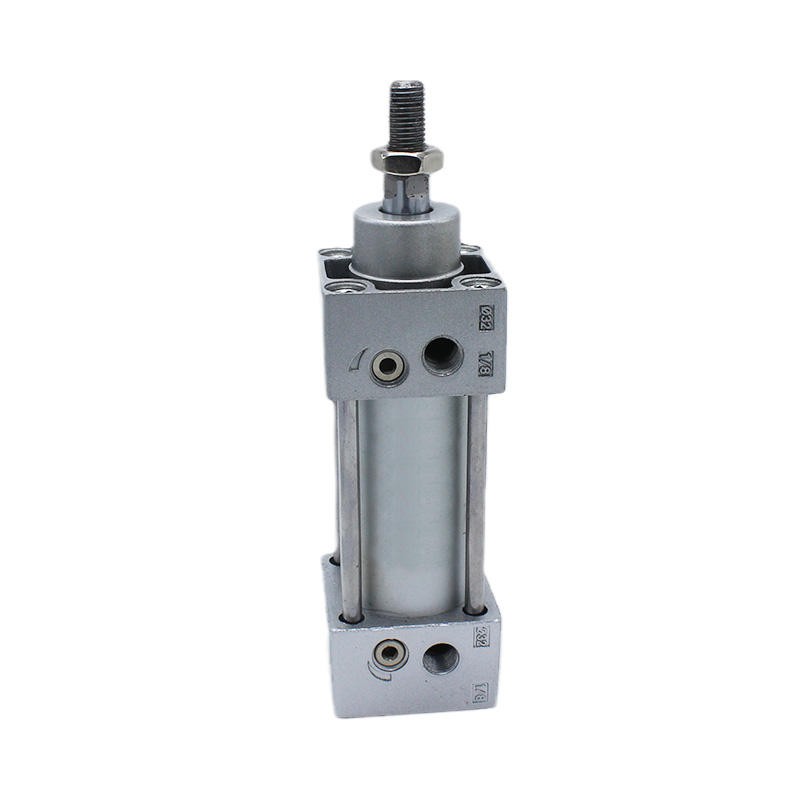

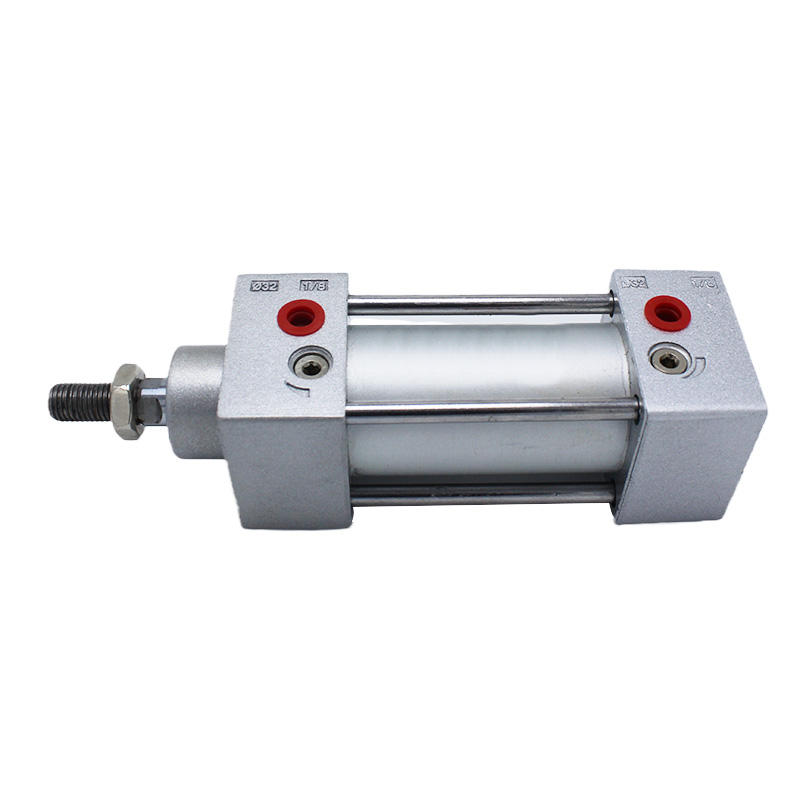

Pneumatic standard cylinder Air Cylinder Double Acting Single Rod Double Rod SC
- Model:
- SC
- MOQ:
- 1
- Place of Origin:
- China

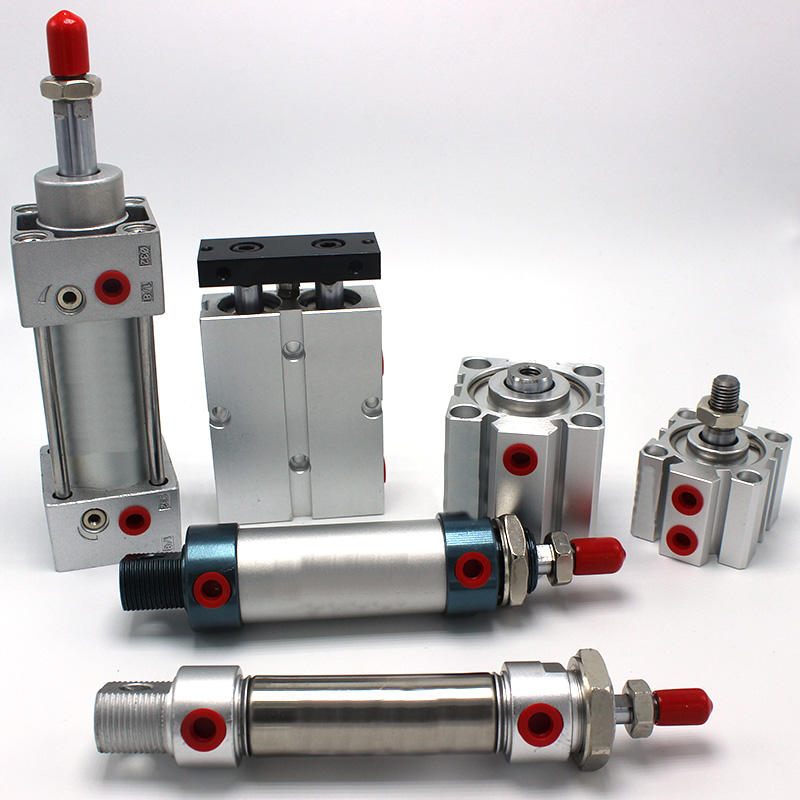

Various specifications of cylinder and cylinder mounting accessories are available for customers to choose.
Pneumatic standard cylinder Air Cylinder Double Acting Single Rod Double Rod SC
1.Product Introduction of the Pneumatic standard cylinder Air Cylinder
SC series standard cylinder, With fine sealing ring, thickened cylinder block, easy to install.New aluminum alloy material, surface electroplating treatment, high strength, no deformation, not easy to corrosion
2.Product Parameter（Specification）of the SC series Pneumatic standard cylinder Air Cylinder
| Bore size (mm) | 32 | 40 | 50 | 63 | 80 | 100 | |
| Action | Double acting,single rod | ||||||
| Fluid | Filtered compressed air | ||||||
| Proof pressure | 1.5MPa | ||||||
| Operating pressure range | 0.1-0.9MPa | ||||||
| Ambient and fluid temperature | —5~70°C No freezing | ||||||
| Port size | G1/8 | G1/4 | G3/8 | G1/2 | |||
| Piston rod thread | M10*1.25 | M12*1.25 | M16*1.5 | M20*1.5 | |||
| Cushion | 0 to -10mm compared to the standard stroke. | ||||||
3. Production Details of the SC series Pneumatic standard cylinder Air Cylinder
