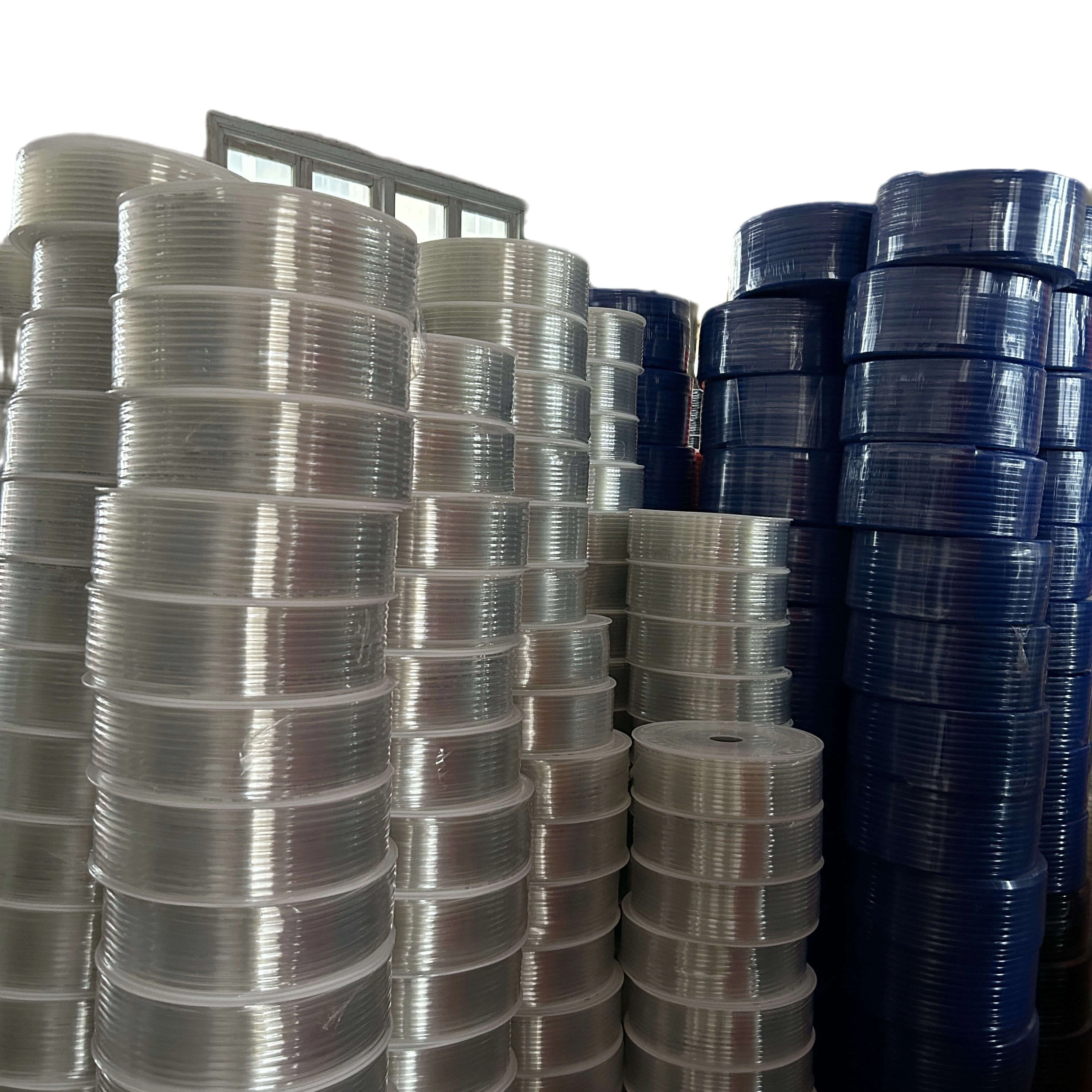

Customized High Pressure Flexible Nylon PU Air Hose Plastic Rubber Line Polyurethane Tubing Pneumatic Tube Pipe
- MOQ:
- 1
- Place of Origin:
- China
- Type:
- EN/EU
- Heating current:
- -50-100℃
Using PU raw materials to produce, stable quality, high pressure resistance, weather resistance, abrasion resistance, resistance to bending, smooth and flexible tube body, bright colors, high elasticity, resistance to winding, bending radius is small.
The code system is : type + tube outerdia& Innerdia + color
1. Type
| EN | Nylon |
| EU | Polyurethane (PU) |

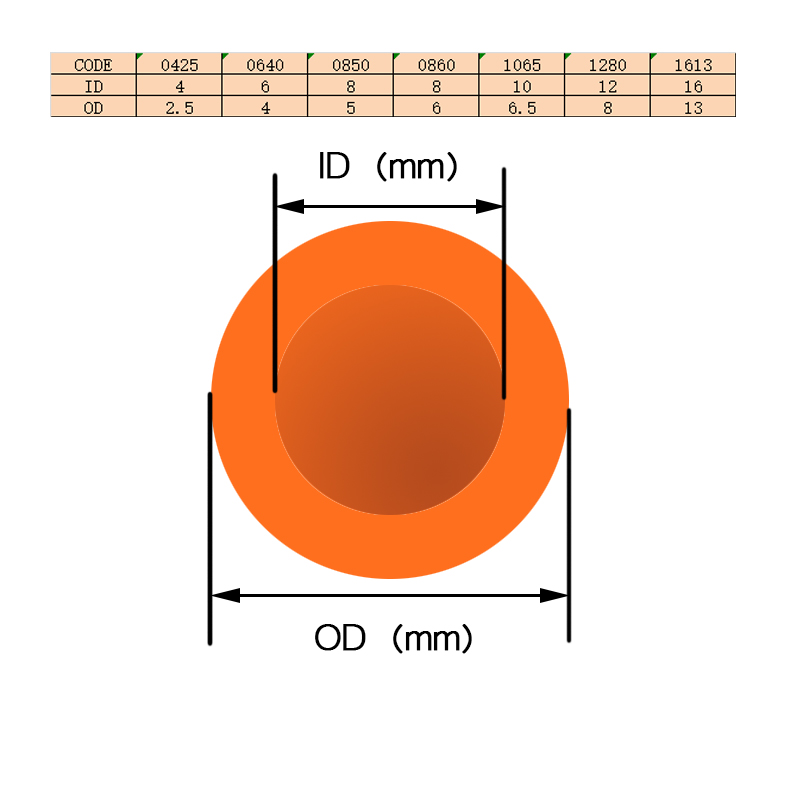

2. Tube outerdia& innerdia
| Code | 0425 | 0640 | 0850 | 0860 | 1065 | 1280 | 1613 |
| OD(mm) | Φ4.0 | Φ6.0 | Φ8.0 | Φ8.0 | Φ10.0 | Φ12.0 | Φ16.0 |
| ID(mm) | Φ2.5 | Φ4.0 | Φ5.0 | Φ6.0 | Φ6.5 | Φ8.0 | Φ13.0 |
3. Color
| C | B | BU | R | Y | G | W | O |
| transparent | black | blue | red | yellow | green | white | orange |

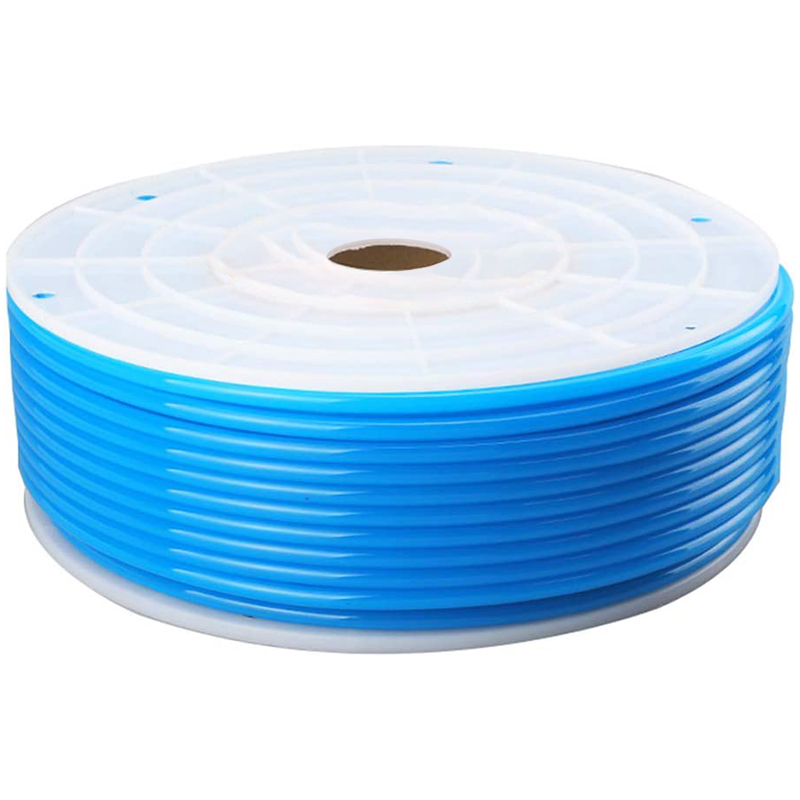

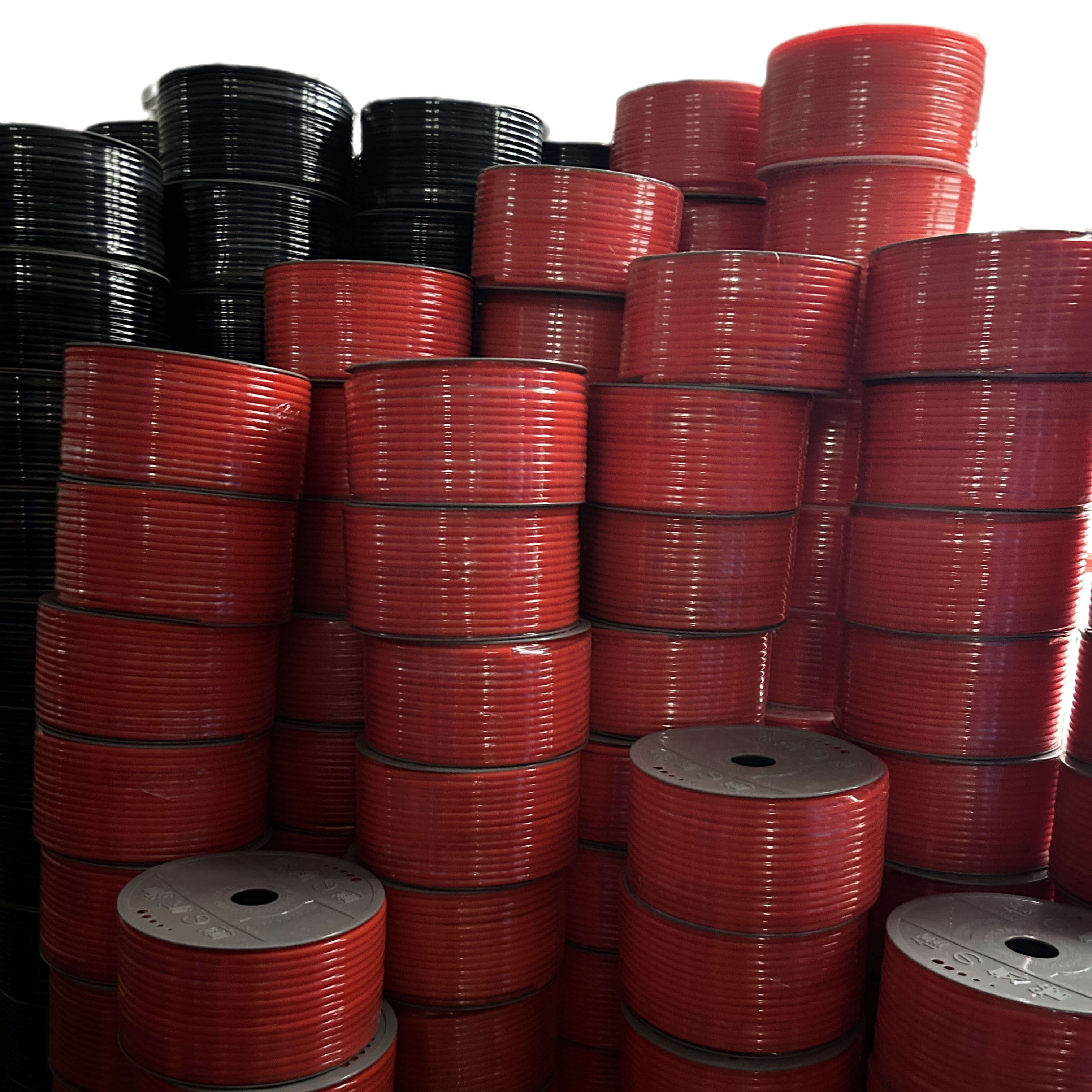

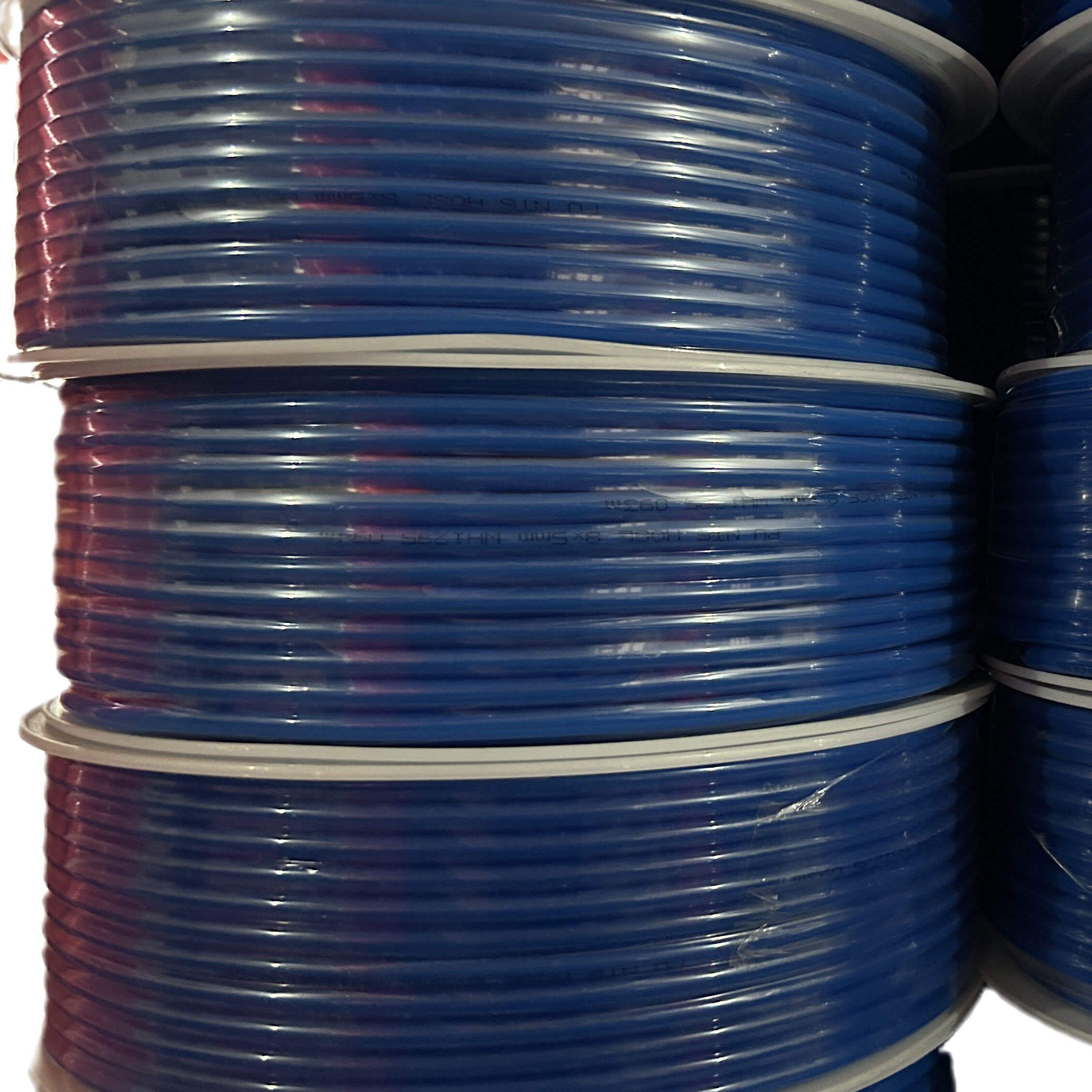

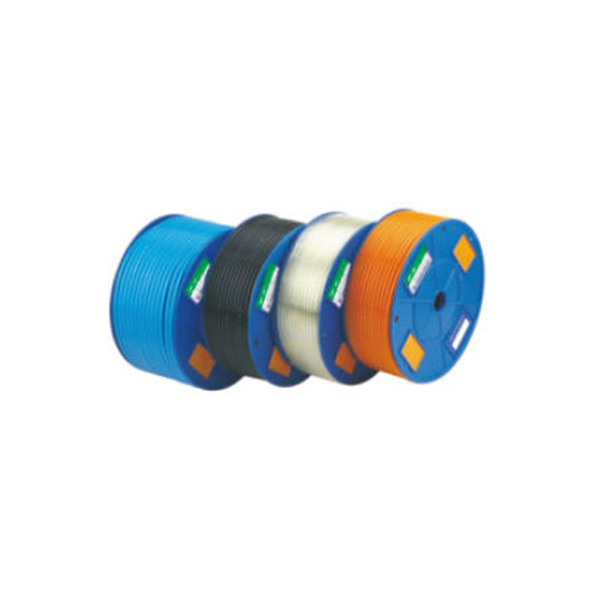

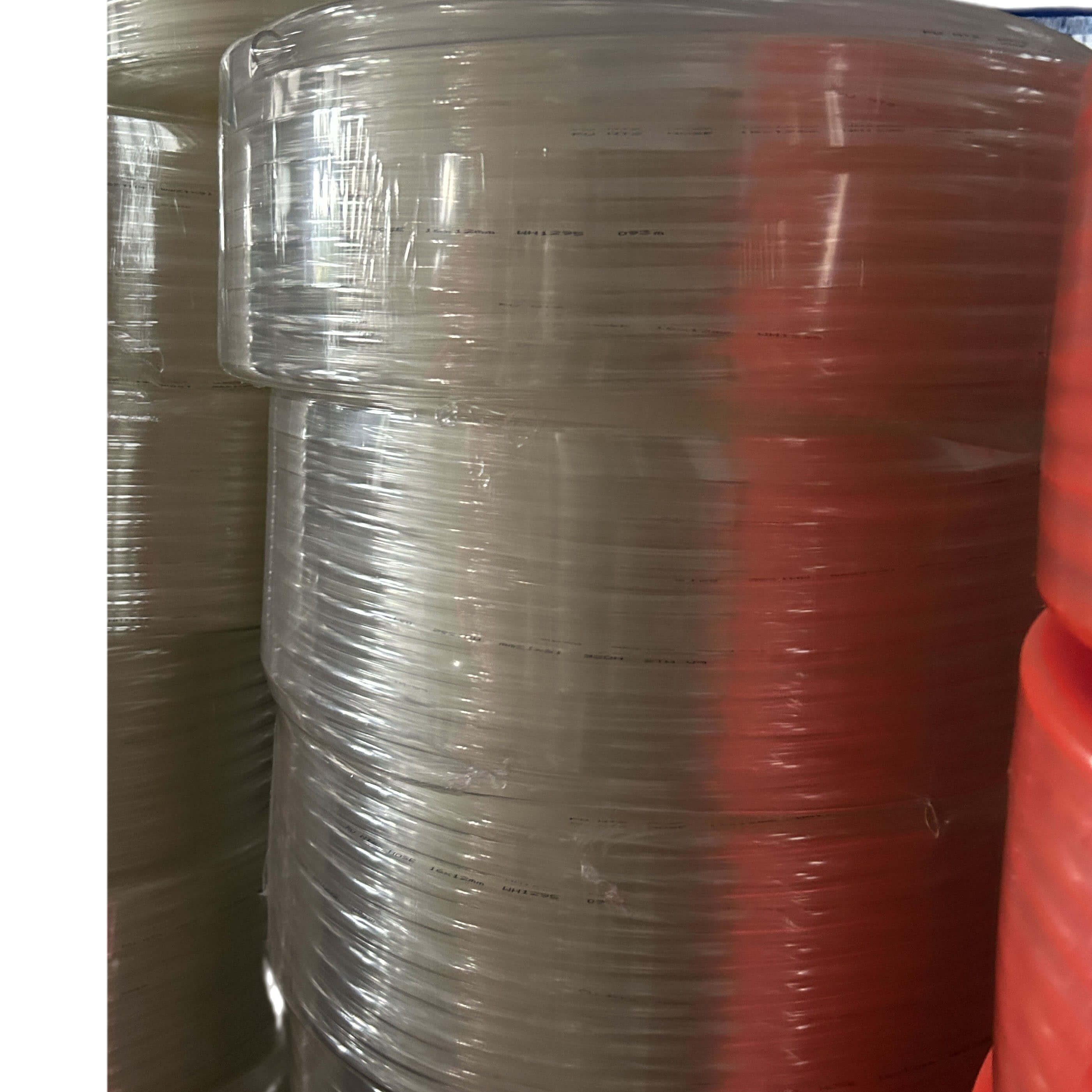

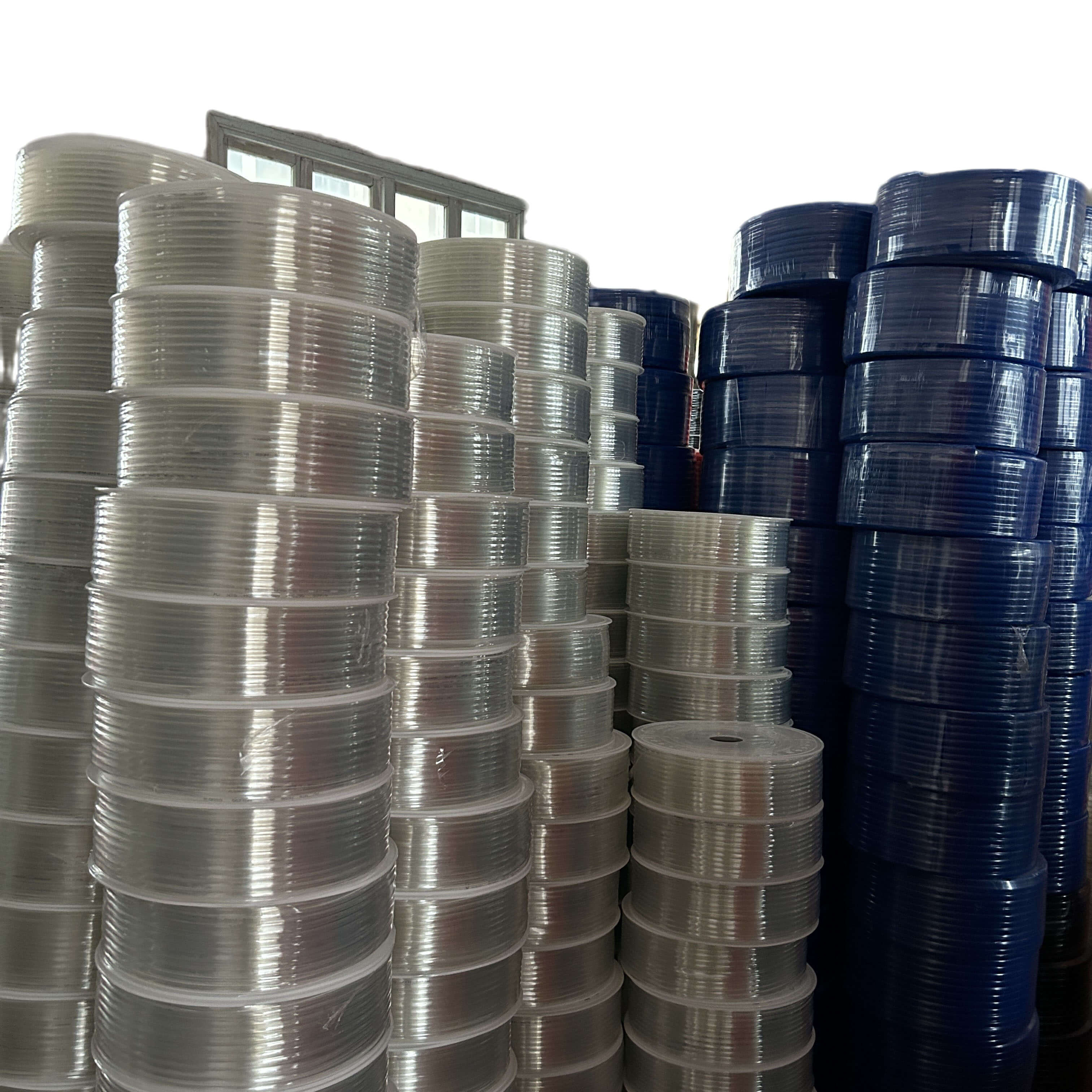

4. Product pictures
Features--why is this unique?
*Resistance in high pressure, shock, corruption, deterioration, extrem climate and bent.

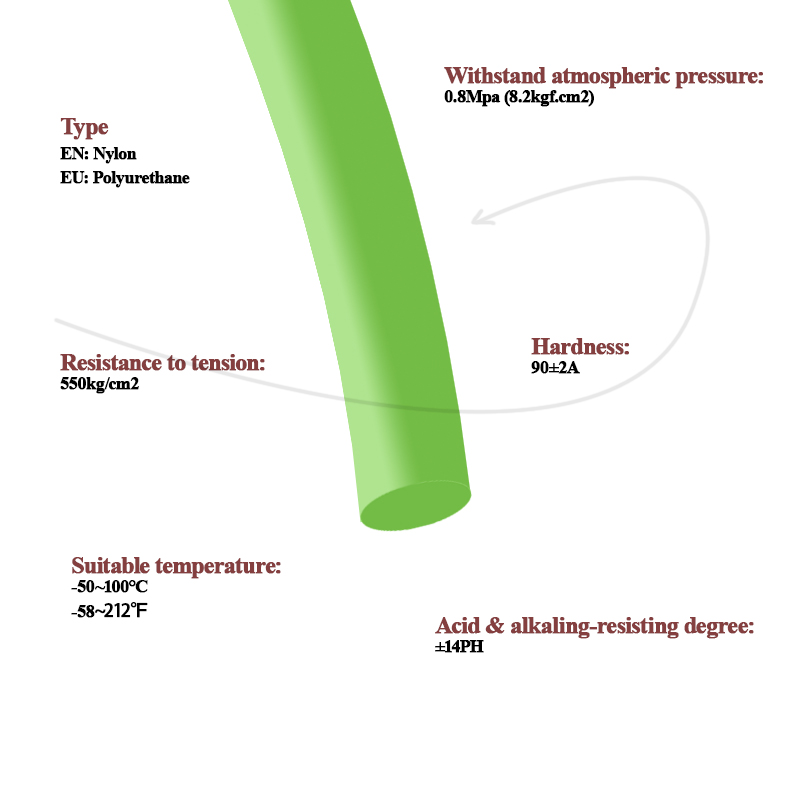

(Seen from technical data)
| Hardness | 90±2A |
| Density | 1.24±0.02g/mm |
| Resistance to tension | 550kg/cm2 |
| Extension ratio | 450% |
| Tear intensity | 10kg/mm |
| Wear and tear | 35mm2 |
| Suitable temperature | -50~100℃ (-58~212℉) |
| Acid& alkaling-resisting degree | ±14PH |
| Withstand atmospheric pressure | 0.8Mpa(8.2kgf/cm2) |
* High precision of inside and outside diameter.
It can be choosed by your preference.
* Suitable for distribute tube and various connectors.
Multichoices are available.
Product Presentation

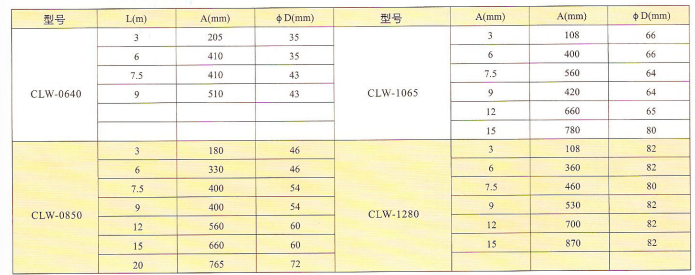

Specification
