Brass Silencer
- Model:
- Muffler copper connection series
- Place of Origin:
- China
- Application:
- Pneumatic industry

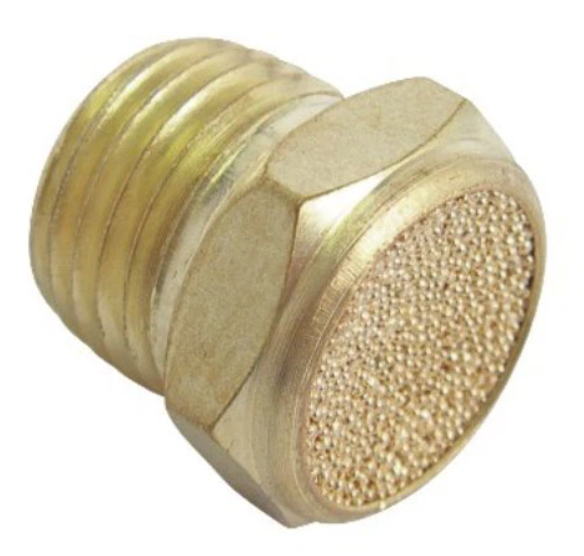

This bronze pneumatic silencer is used to vent pressurized air to the atmosphere in a safe way. Through their design, they decrease the audible noise of vented pressurized air by increasing the surface area of the release of pressurized air. It has a connection port of R1" male threads to screw into a port. It can handle an ambient temperature of 5 - 60 °C and operating pressure 1mpa.
Depending on your usage, you should incorporate a silencer cleaning schedule into the system maintenance planning. Remove the silencer and rinse it under lukewarm tap water. Then use compressed air to blow away any remaining dirt particles. Do this from outside to inside instead of the usual inside to outside.
Pros
• Decreases the noise of exiting pressurized air to keep workers safe and application noise specifications correct
Cons
• Decreased flow rate, however, it is minimal
• It is not a flat design, so it has a protrusion that takes up space
Specification
Connection size: 1/8 1/2 3/4 1inch
Material: Brass, Bronze
Temperature (°C): 5 °C to 60 °C
Pressure (bar): 1mpa
Connection type: Outer thread conical BSPT-R
Type of accessory/spare part: Silencer
