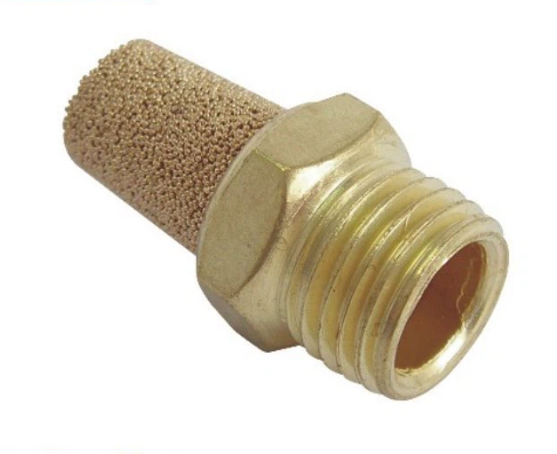

Brass Muffler

This bronze pneumatic silencer, also called a pneumatic muffler, is used to vent pressurized air to the atmosphere in a safe way. Air exiting a pneumatic pressurized system can cause an audible noise, which can cause harm to workers or not meet application noise specifications. They decrease the audible noise by increasing the surface area of the release of pressurized air. It has a connection port of R1/8" male threads to screw into a port. The silencer has a conical type design. It can handle an ambient temperature of 5- 60 °C and an operating pressure 1mpa. Depending on your usage, you should incorporate a silencer cleaning schedule into the system maintenance planning. Remove the silencer and rinse it under lukewarm tap water. Then use compressed air to blow away any remaining dirt particles. Do this from outside to inside instead of the usual inside to outside.

Pros

• Decreases the noise of exiting pressurized air to keep workers safe and application noise specifications correct

Cons

• Decreased flow rate, however, it is minimal

• It is not a flat design, so it has a protrusion that takes up space

Specification

Connection size: 1/8 1/2 3/4 1inch

Material: Brass, Bronze

Temperature (°C): 5 °C to 60 °C

Pressure (bar): 1mpa

Connection type: Outer thread conical BSPT-R

Type of accessory/spare part: Silencer
