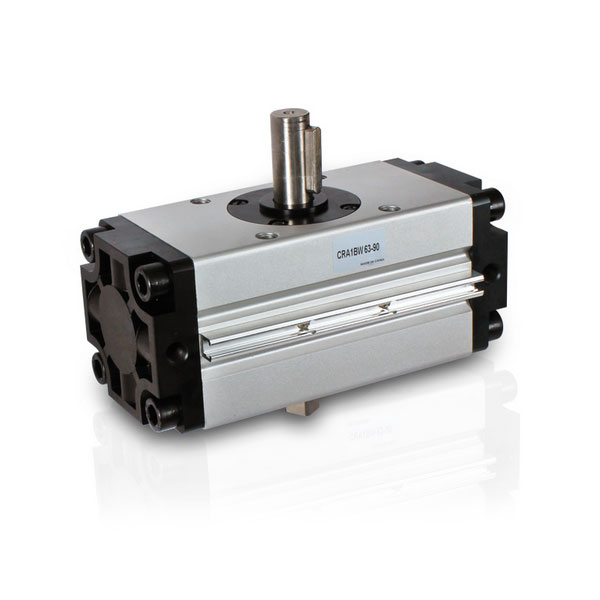

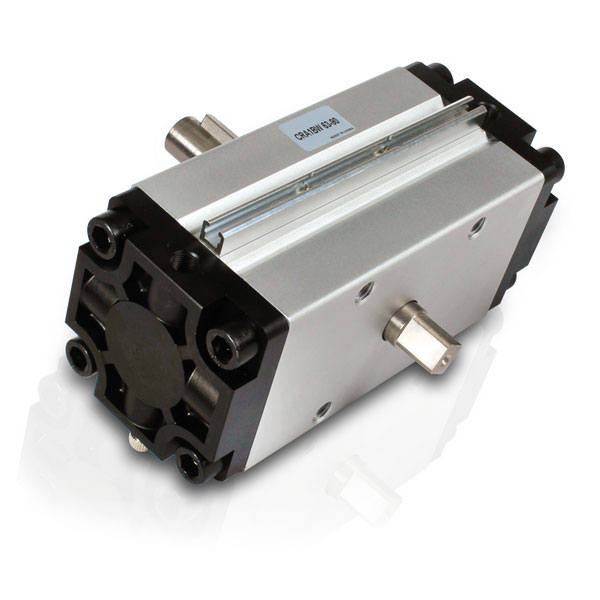

Pneumatic Rotary Actuator CRA1

Model:
CRA1
MOQ:
1
Place of Origin:
China

Overview for CRA1 Rotary Cylinder

CRA1 Rotary Cylinder offers very high torque-to-size and accurate positioning. Bore sizes of CRA1 Rotary Actuator are 30, 50, 63, 80 and 100mm. Units may be ordered auto-switch capable and with cushions. Dimensions range from 3" X 4" X 2" to a maximum of 8" X 9.65" X 4.41". Single shaft end or double shaft end models of CDRA1-Z Rotary Actuator are available.

Technical Parameters for CDRA1-Z Rotary Actuator

Rotary Air Cylinder Bore: 30, 50, 63, 80, 100mm

Motion Pattern: Double-acting

Operating pressure: 0.1~1.0MPa

CDRA1-Z Rotary Actuator Lubrication: Non-lube

Ambient and fluid temperature: 0~60°C

CDRA1-Z Rotary Actuator Working Medium: Air (No Freezing)
