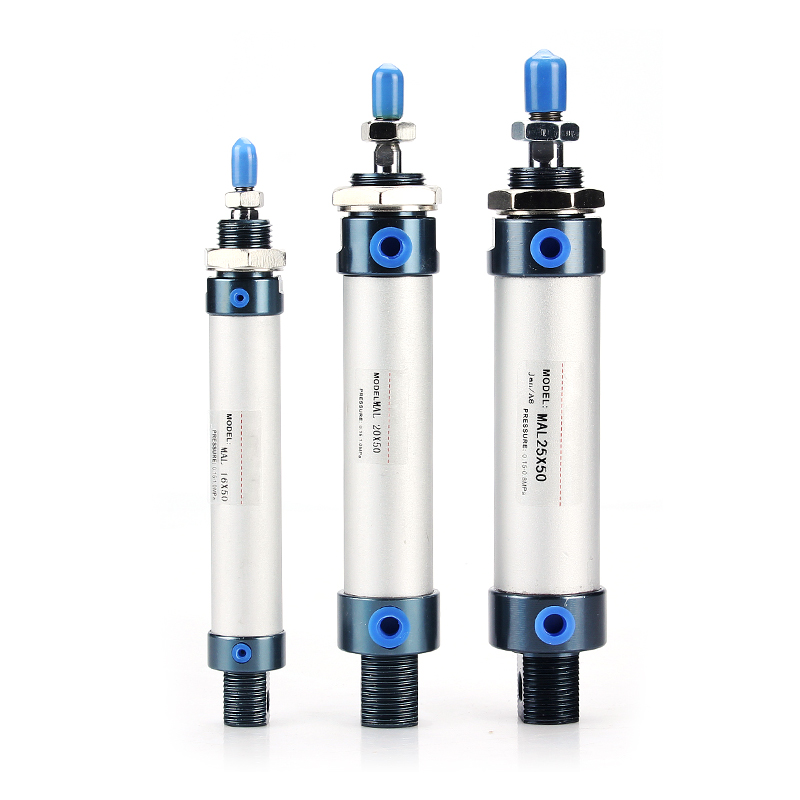

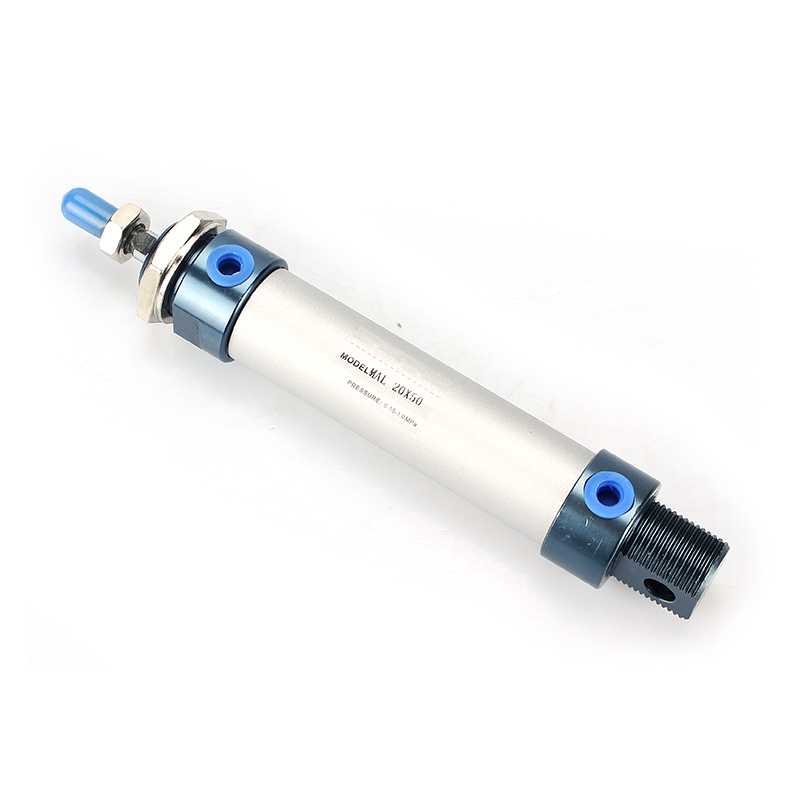

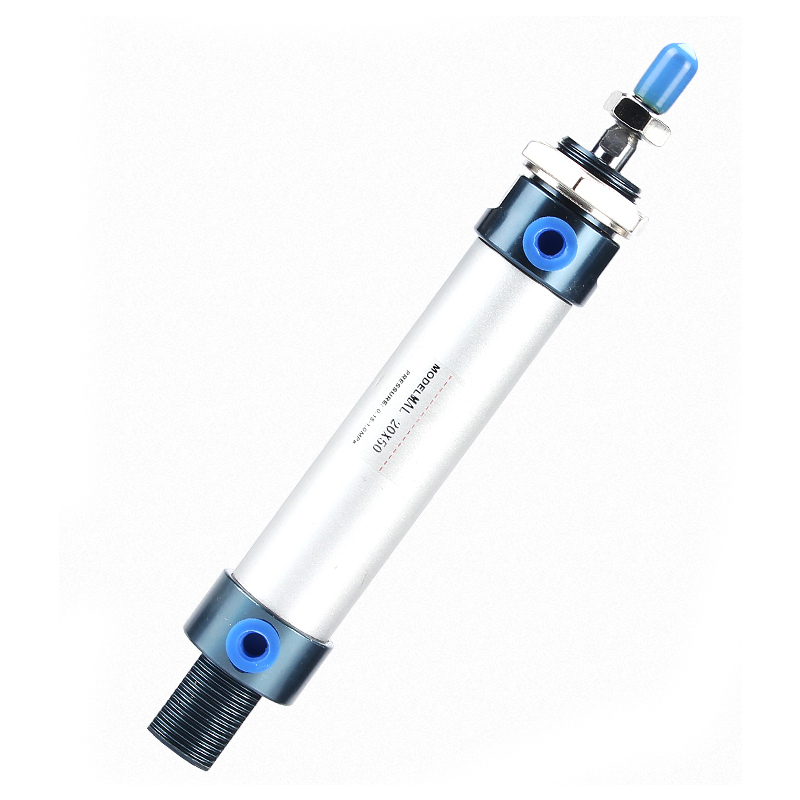

Overview for MAL Mini Pneumatic Cylinder
The output torque and output power of MAL Mini Air Cylinder are more stable. Increasing the number of cylinders can make the air car easier to start, and the acceleration response is better. In order to improve the performance of air car, the number of cylinders must be increased.
1. No lubrication: Using oil-containing powder metallurgy copper as the axle bearing, so that the piston rod does not need lubrication.
2. Durability: The front and rear covers of the MAL Mini Air Cylinder body are treated by anodic hard oxidation, not only has corrosion resistance, but also the appearance is more compact and exquisite.
3. High temperature resistance: The MAL Mini Air Cylinder uses high temperature sealing material to make the cylinder work normally at 150℃.
4. Variety of installation modes.
5. With magnetic: There is a permanent magnet on the cylinder piston, which can trigger the induction switch installed on the cylinder to sense the position of the MAL Mini Air Cylinder.
Overview for MAL Mini Pneumatic Cylinder
Bore Sizes: 20,25,32,40mm
Stroke Lengths: 25,50,75,80,100,125,150,160,175,200,300,500mm
Operating Pressure: 0.1-1.0 MPa / 0.2-1.0 MPa
Speed:30~500mm/s；50~500mm/s；
Working Environment Temperature: -20 to 70°C
