Overview for CDG1 Miniature Pneumatic Cylinder
The female thread of the rod end has been standardized;
The operation of magnetic switch is improved, and it is easier to fine-tune the position;
No-trunnion mounting screw hole is added to the basic type;
Set the model of the rod end installation parts and the swing base installation parts
Magnetic switch type (CDG1-Z series: CDG1, CDG1W, CDG1K, CDG1KW, CDG1R)
Standard CG1-Z single-rod double-acting (new) 20,25,32,40,50,63,80,100
Single-acting (telescopic) 20, 25, 32, 40; CG1W-Z double-rod double-acting 20, 25, 32, 40, 50, 63, 80, 100
Rod non-rotating type CG1K-Z Single-rod double-acting 20,25,32,40,50,63; CG1KW-Z Double-rod double-acting, direct mounting type CG1R-Z Single-rod double-acting
Rod non-rotating directly mounted type (not changed) CG1KR single-rod double-acting, low friction type (not changed) CG1□Q single-rod double-acting 20,25,32,40,50,63,80,100, end lock type (not changed) CBG1 single-rod double-acting
The rodless side end cover is integrated with the cylinder tube, and the total length is shortened and the weight is light.

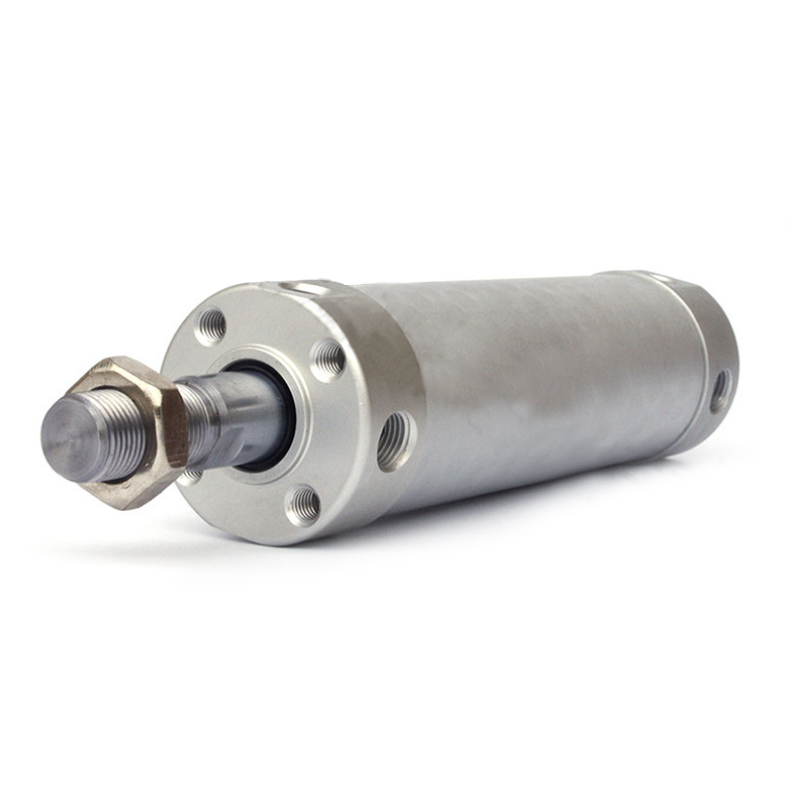

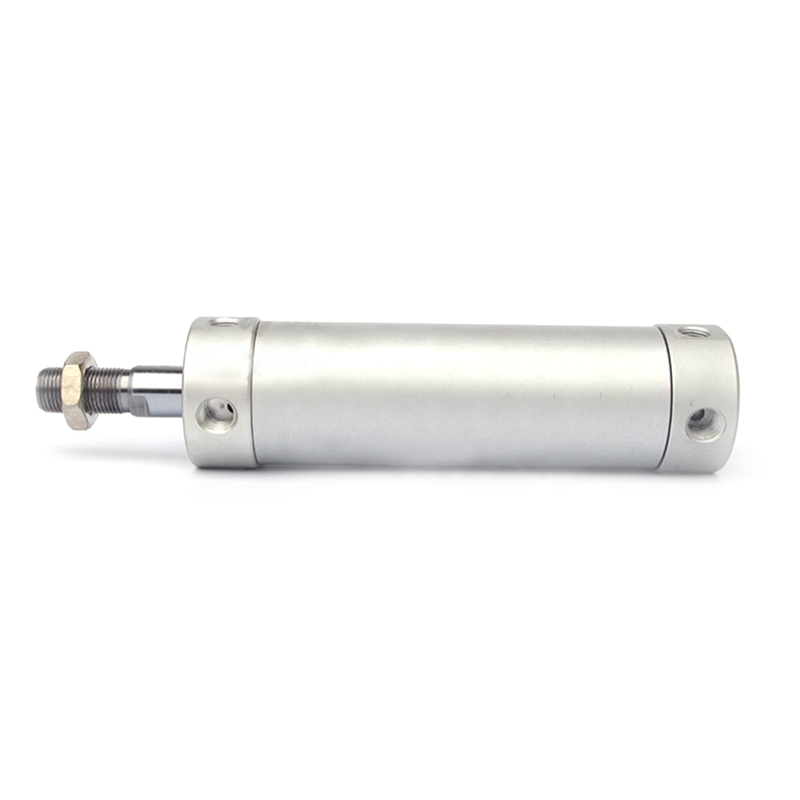

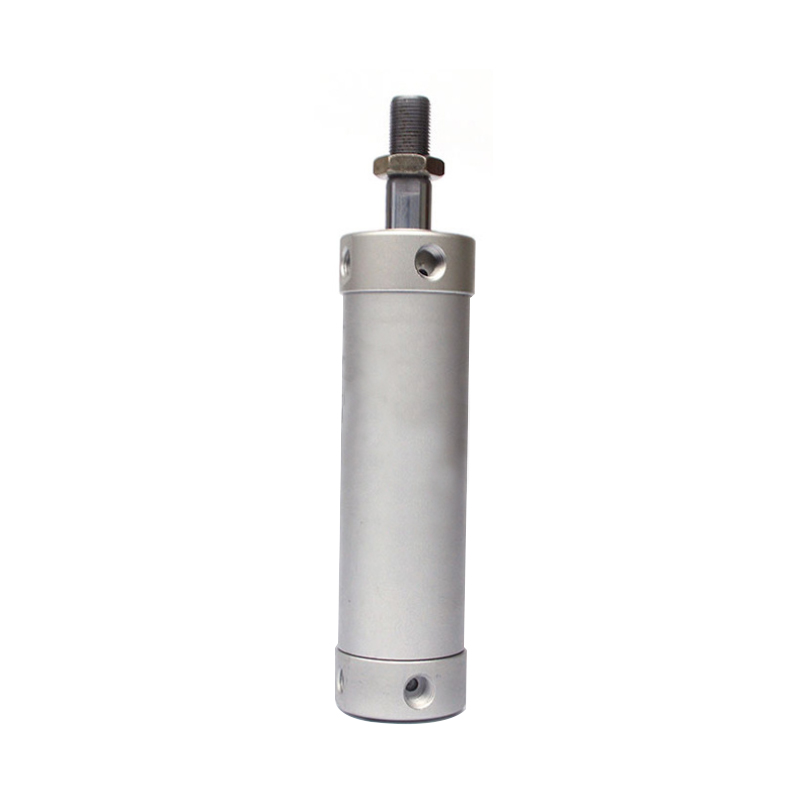

Features for CG1 Mini Air Cylinder
1. The CG1 Mini Air Cylinder tube is made of high-strength aluminum alloy and is anodized on the surface, corrosion resistance and wear resistance;
2. The front and rear covers and the cylinder tube are connected by fine thread, which is convenient to assemble;
3. The dustproof sealing ring is made of polyurethane material, with good strength and wear resistance, long service life;
4. The piston sealing ring has small structure, stable operation, low dynamic friction and static friction resistance;
5. There is a fixed anti-collision pad inside the CG1 Mini Air Cylinder to reduce the reversing impact.
