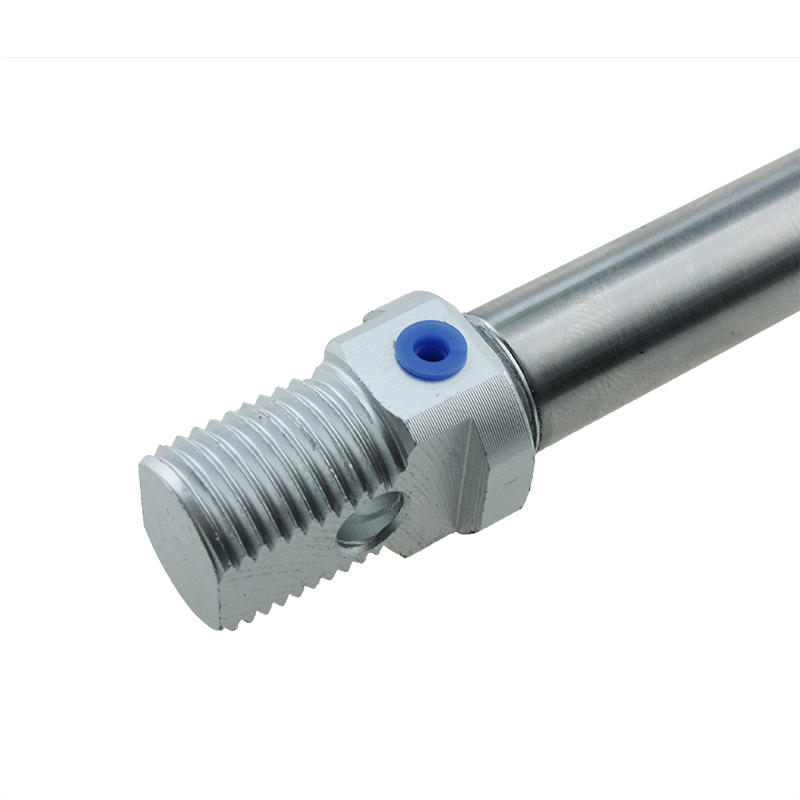

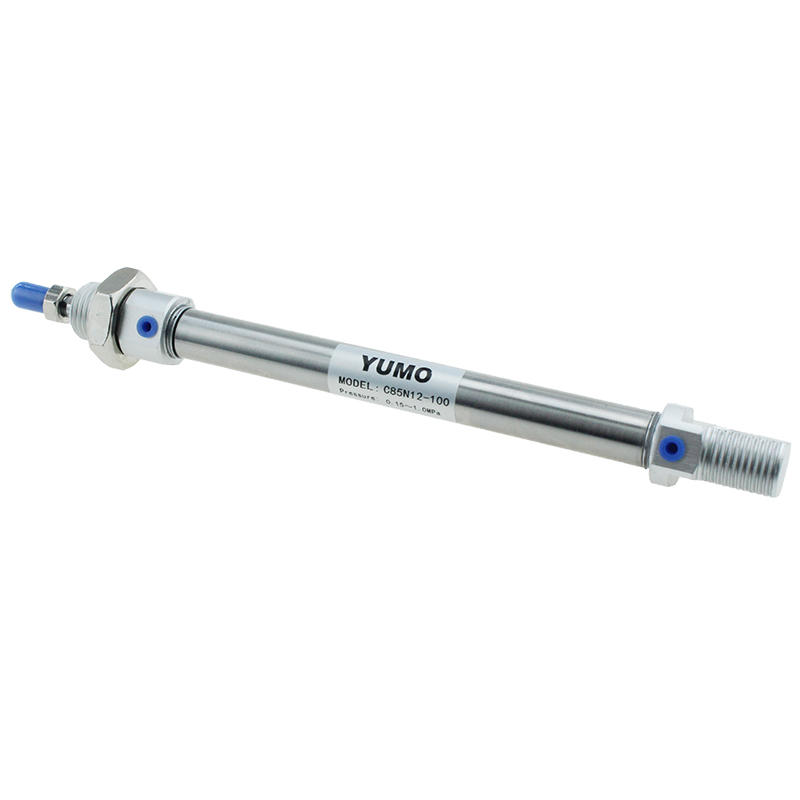

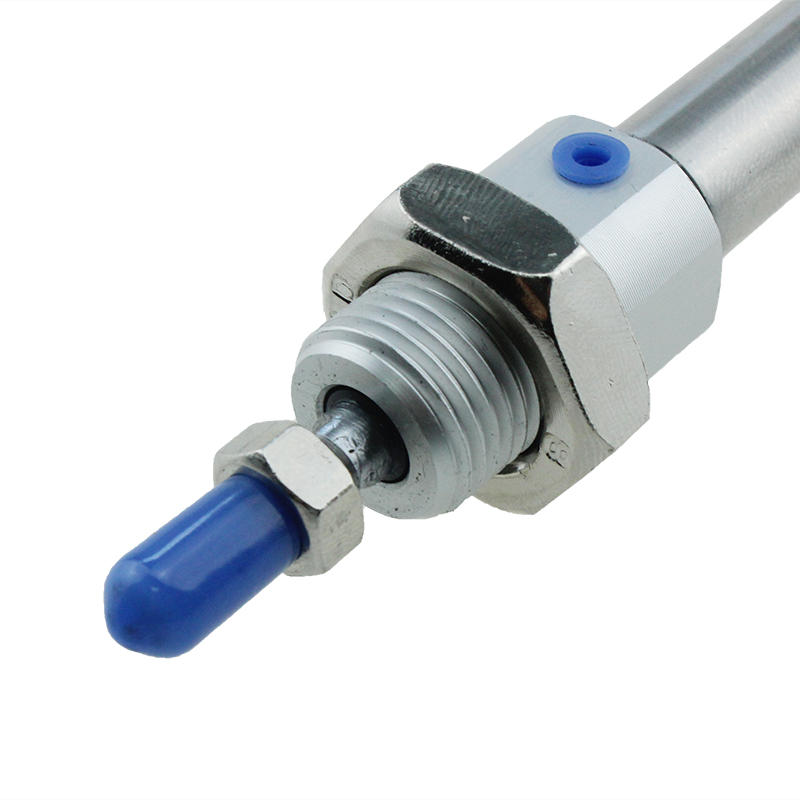

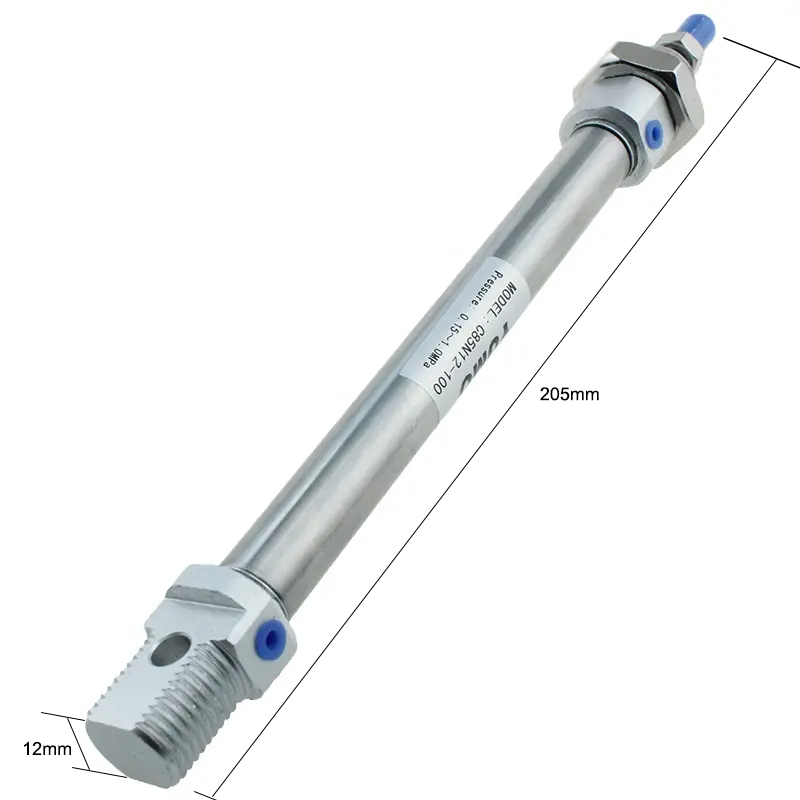

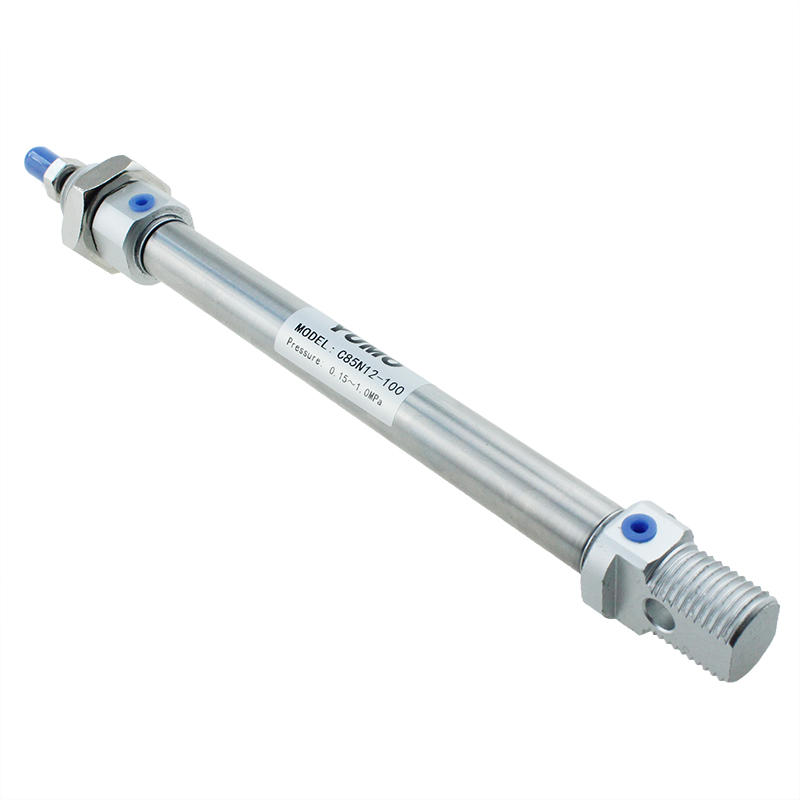

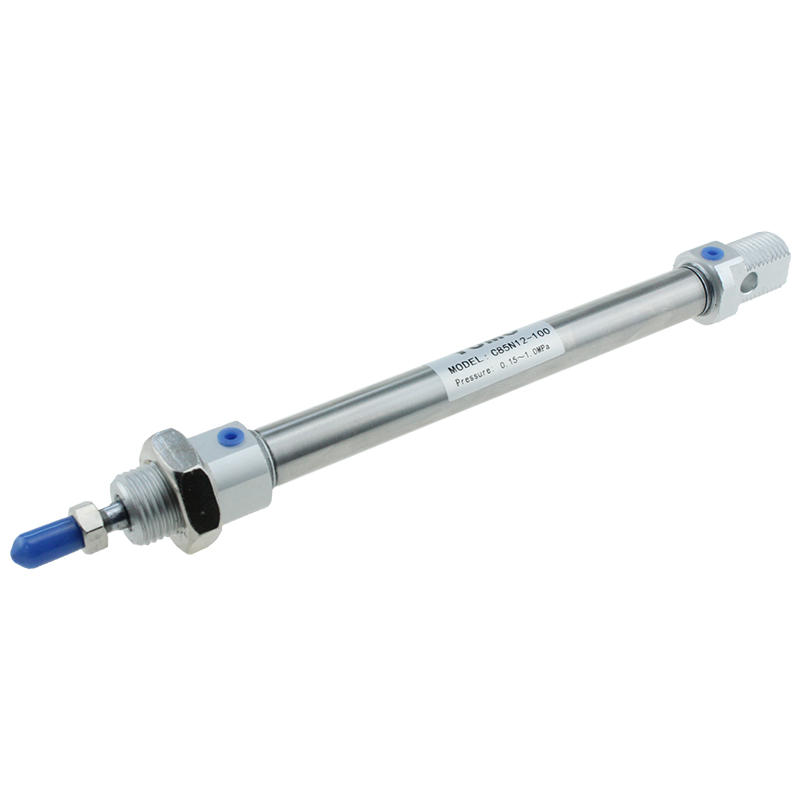

Air Cylinder Standard/Non-rotating Type Double Acting Single/Double Rod
- Model:
- C85N12-100
- Place of Origin:
- China
The cylinder refers to the cylindrical metal parts that guide the piston to carry out linear reciprocating movement in the cylinder. Air in the engine cylinder converts heat energy into mechanical energy through expansion; The gas is compressed by the piston in the compressor cylinder to increase the pressure.
Double-acting cylinder is a cylindrical metal part that guides the piston to perform linear reciprocating motion in the cylinder. Air in the engine cylinder converts heat energy into mechanical energy through expansion; The gas is compressed by the piston in the compressor cylinder to increase the pressure.
Specifications
| Bore size (mm) | 12 | |
| Piston rod dia. (mm) | 6 | |
| Piston rod thread | M6 x 1 | |
| Port size | M5 x 0.8 | |
| Action | Double acting, Single/Double rod | |
| Fluid | Air | |
| Proof pressure | 1.5 MPa | |
| Max. operating pressure | 1.0 MPa | |
| Min. operating pressure | 0.08 MPa | |
| Ambient and fluid temperature | -20 to 80°C | |
| Cushion | Rubber bumper (Non-rotating: Rubber bumper only), Air cushion | |
| Lubrication | Not required. Use turbine oil Class 1 ISO VG32, if lubricated. | |
| Piston speed | 50 to 1500 mm/s | |
| Allowable kinetic energy | Rubber bumper | 0.04 J |
| Air cushion | 0.19 J | |
| Non-rotating accuracy | ±1° | |
