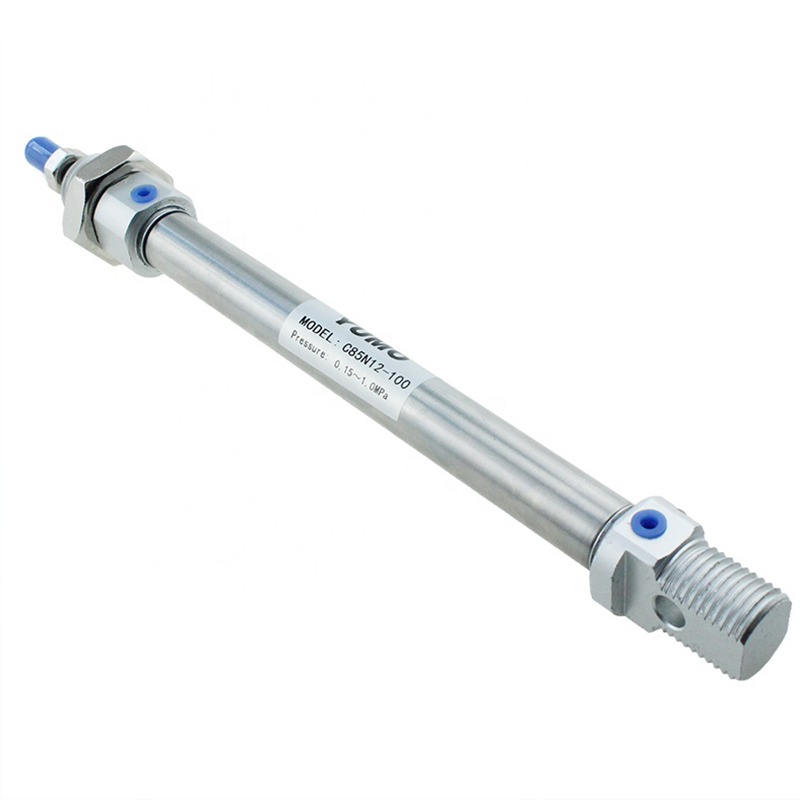

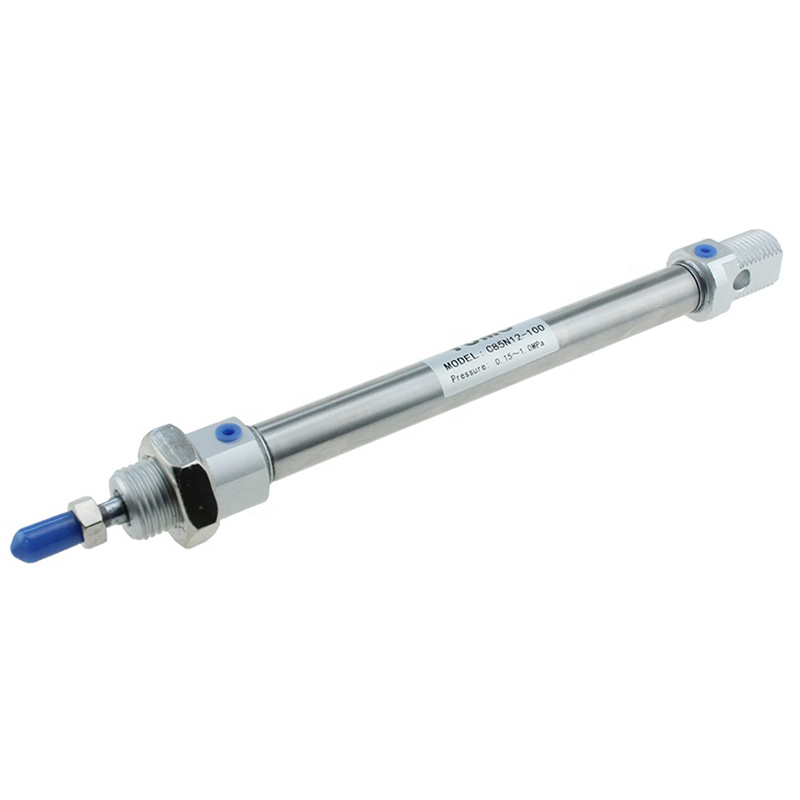

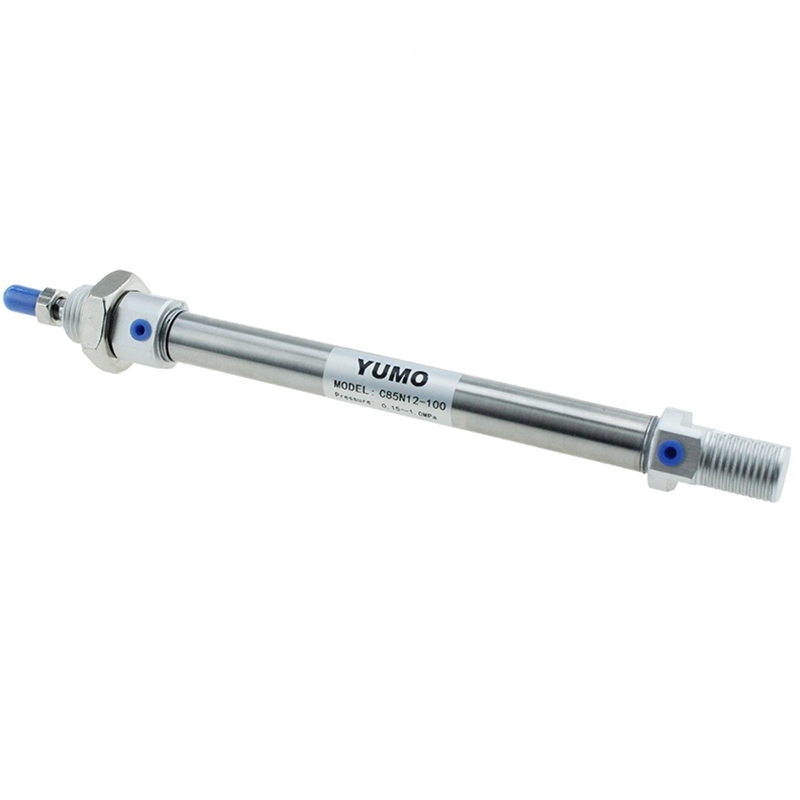

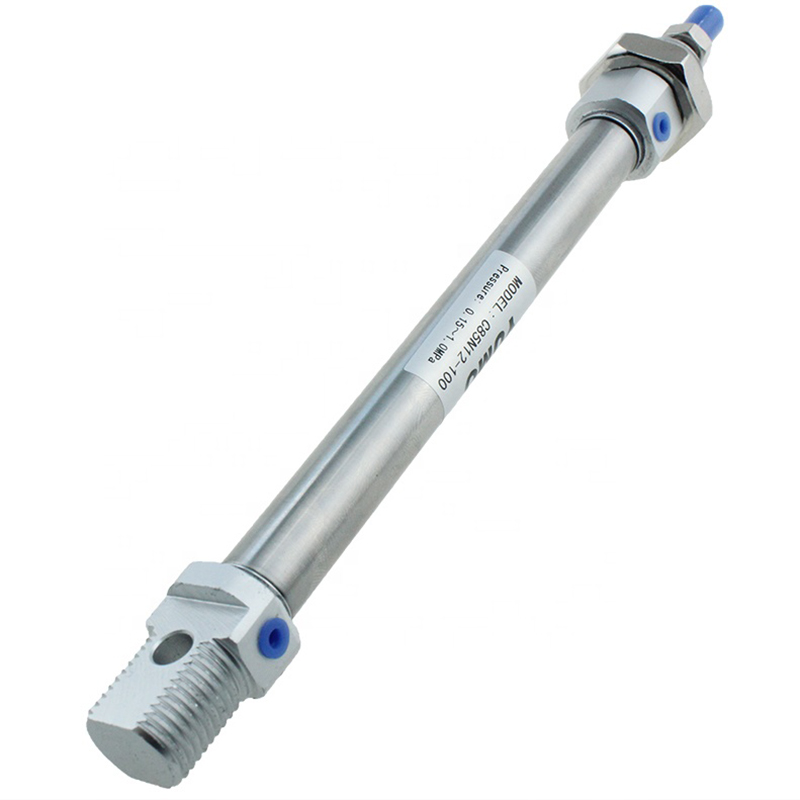

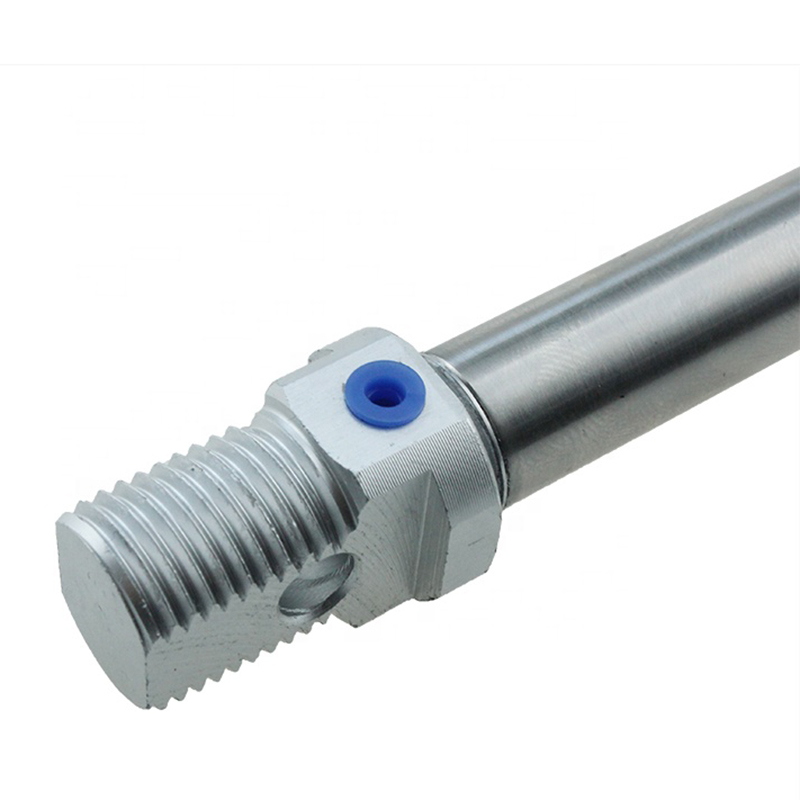

Air Cylinder Standard/non-rotating Type Double Acting Single Rod Mini Standard Pneumatic Air Cushion Cylinder

Model:
C85N12-100
MOQ:
2
Place of Origin:
China
Application:
Printing (tension control), semiconductors (spot welders, chip grinding), automation control, robotics

Air Cylinder Standard/non-rotating Type Double Acting Single Rod Mini Standard Pneumatic Air Cushion Cylinder

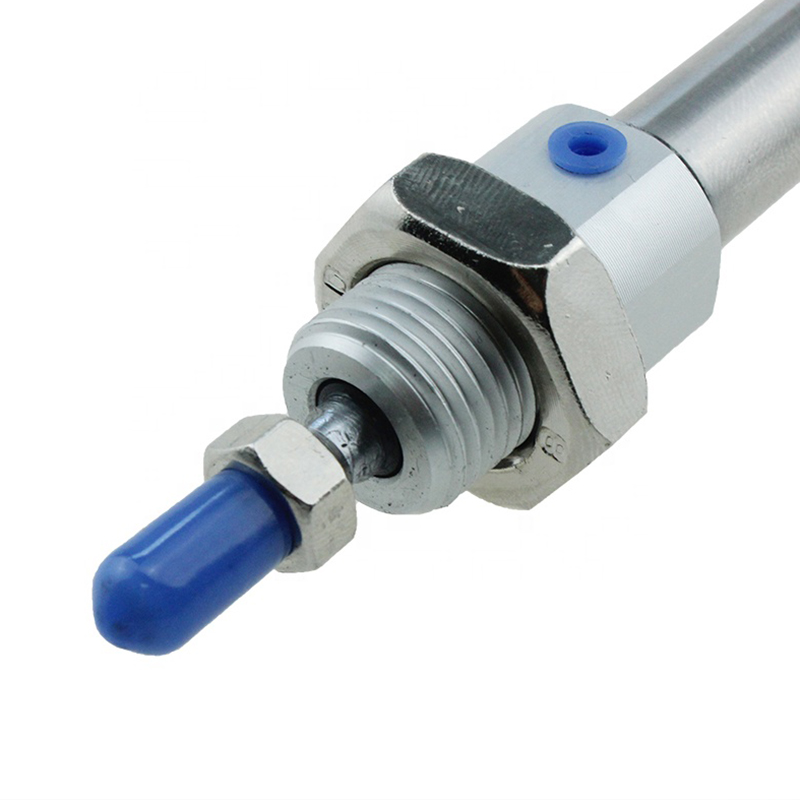

The C85 series conforms to ISO 6432 and CETOP RP52P. The C85 is available in bore sizes 8mm through 25mm with standard strokes ranging from 10mm through 300mm. A unique rod packing design prevents entry of dust and the effectiveness of the seal is such that the C85 is suitable for use in extremely dusty environments. With abrasion resistant packings and replaceable nose seals, the C85 offers exceptional service life.

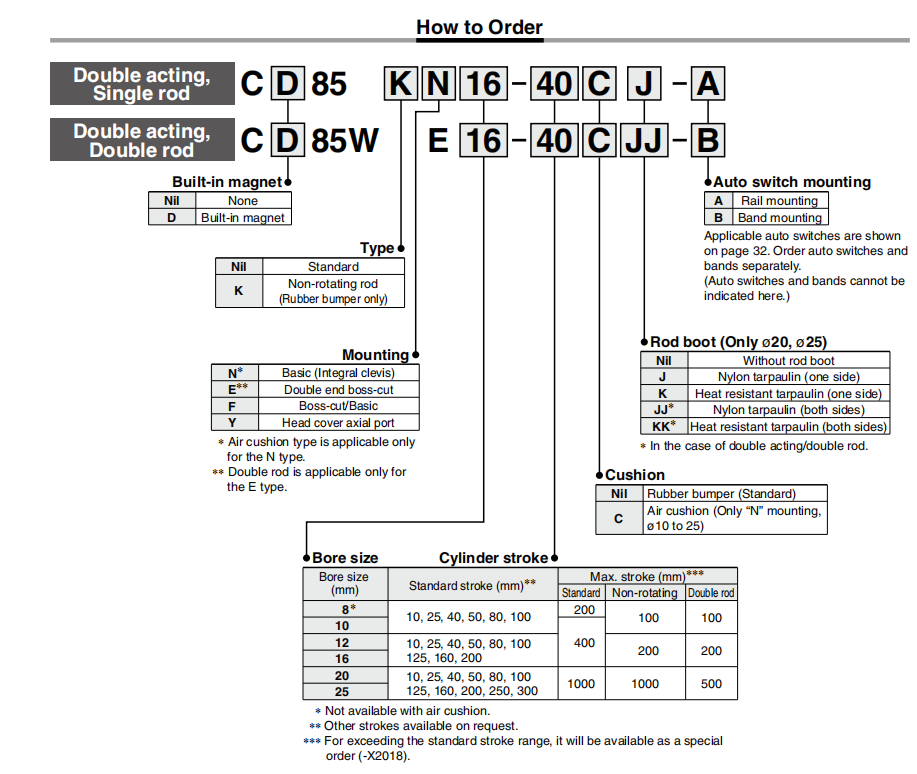

Double acting, single rod, crimped cylinder

Conforms to ISO 6432 and CETOP RP52P

Bore sizes *: 8, 10, 12, 16, 20, 25

Standard strokes up to 300mm

Auto switch capable

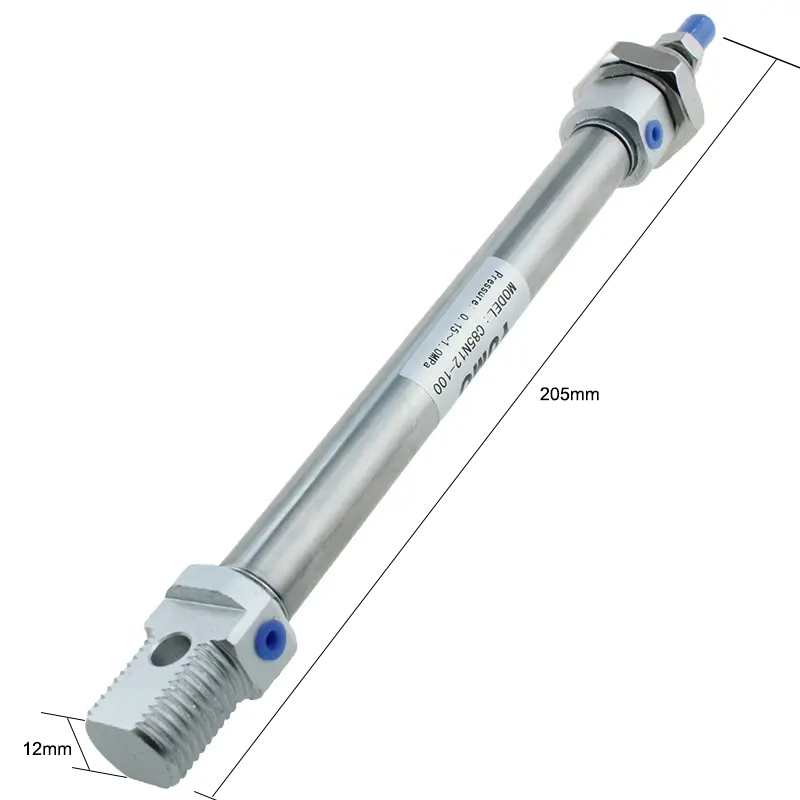

Data
Bore size 12mm
Piston rod dia 6mm
Piston rod thread M6 x 1
Port size M5 x 0.8
Fluid Air
Proof pressure 1.5 MPa
Max.operating press 1.0MPa
Ambient and fluid temperature -20 to 80
Rubber bumper 0.04J
Air cushion 0.19J
