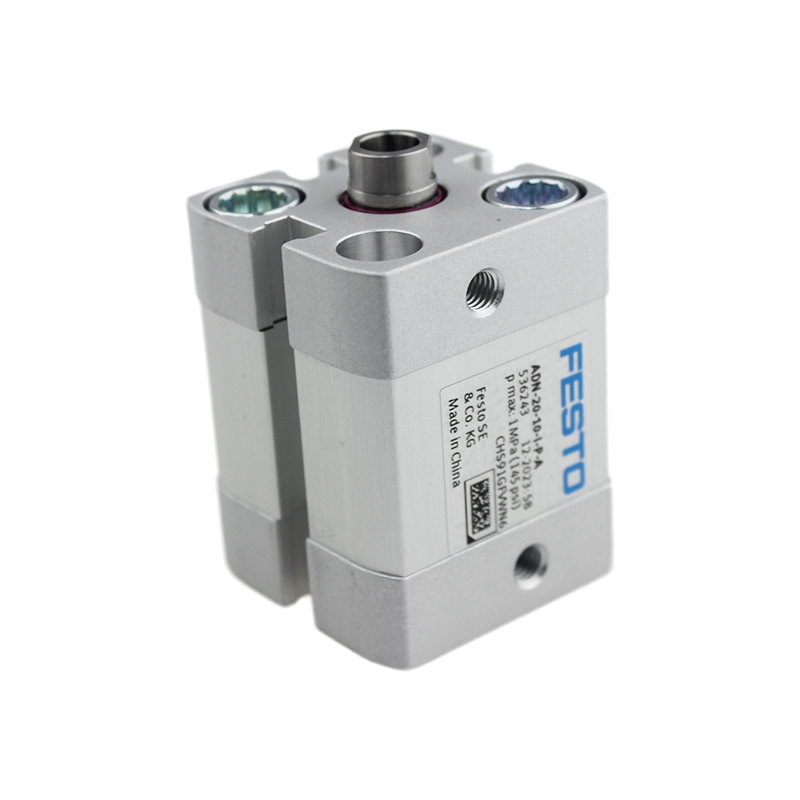

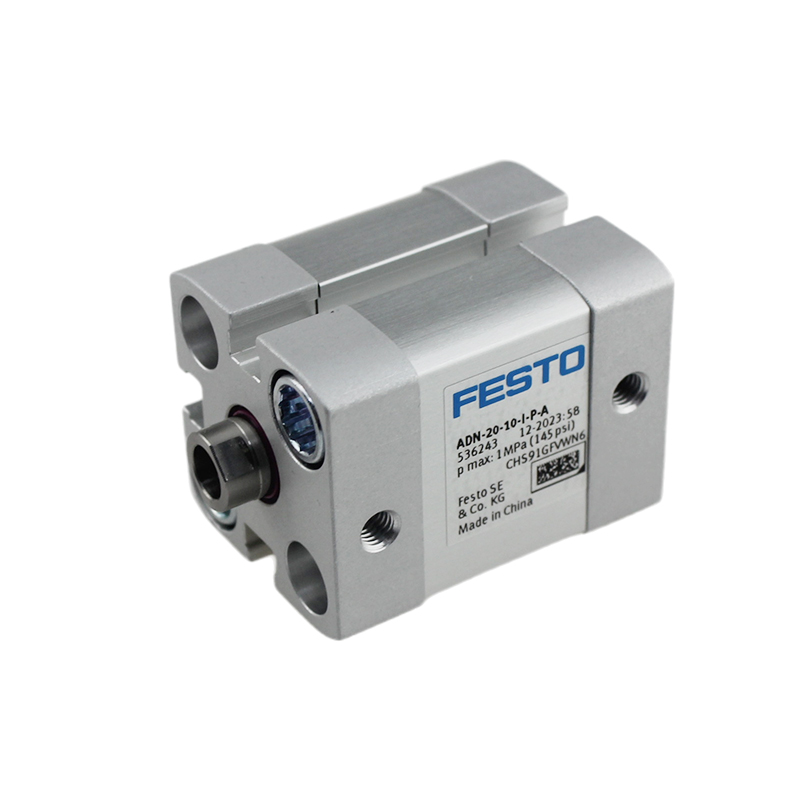

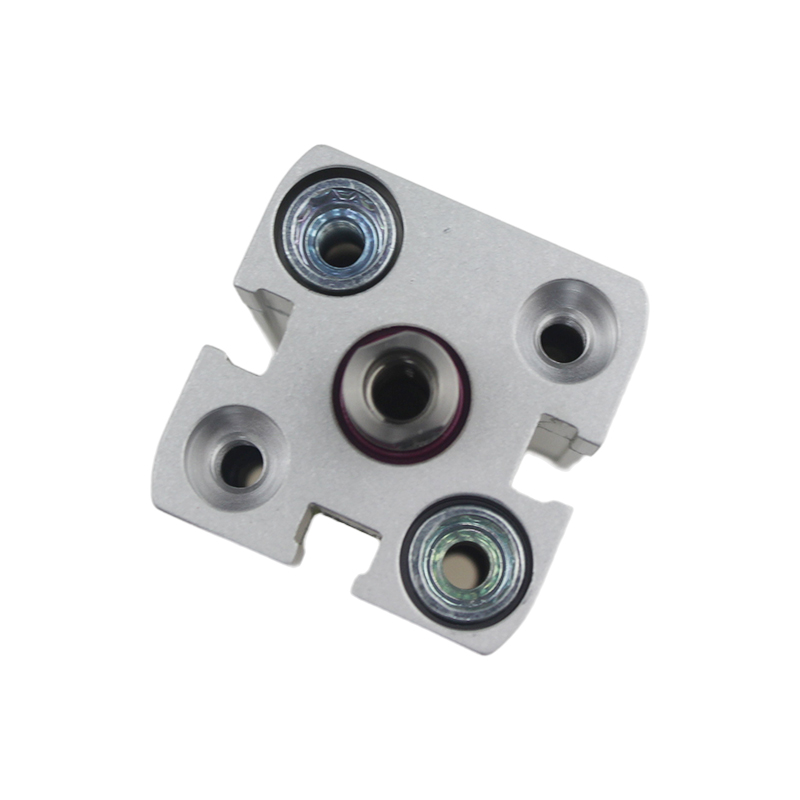

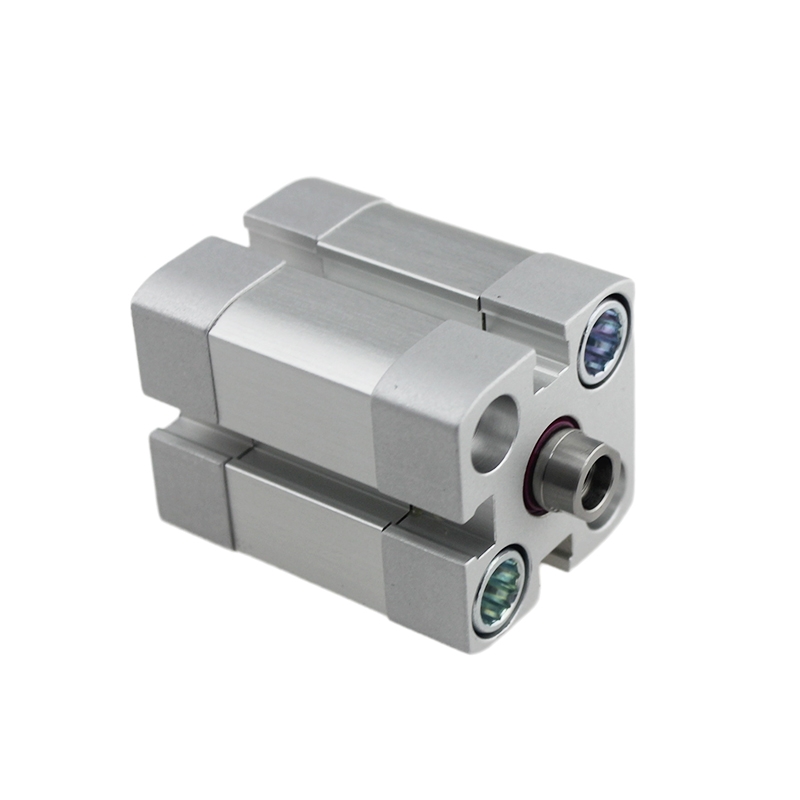

Festo Compact cylinder ADN-20-10-I-P-A New Automatic Controller accessories

Model:
ADN-20-10-I-P-A
MOQ:
2
Place of Origin:
China
Type:
Compact cylinder
Certificate:
CE ROHS ISO14644-1
Application:
Industrial production fields such as liquefied gas, urban natural gas, petroleum and chemical industry, as well as transportation fields such as automobiles and aviation
Size:
Compact

The main differences between Compact and standard cylinders are size, construction, application scenarios and price.
Compact cylinders are usually narrow and suitable for small space occasions, such as automation equipment and robots, and their width is about half that of standard cylinders, which makes thin cylinders more suitable for occasions where frequent movement is required or space is limited.
Standard cylinders are thicker and suitable for applications that require a larger output torque, such as punches, presses and hydraulic lifting platforms. Standard cylinders usually have a longer stroke and larger bore, providing higher load capacity and torque output.
The structure of the Compact cylinder is relatively simple, the use of piston structure, occupy small space, light weight, long service life, and the standard cylinder usually uses the piston rod and the piston axial split structure, has a high torque output, but occupies a large space.
The price of Compact cylinders is usually lower than that of standard cylinders because of its smaller size and simpler structure, while standard cylinders are also higher in price due to their larger size and complex structure.
In addition, the design stroke of the Compact cylinder is generally shorter, and the design stroke of the standard cylinder is longer.

Technical Data
Stroke 10 mm
Piston diameter 20 mm
Piston rod thread M6
Cushioning Elastic cushioning rings/plates at both ends
Mounting position optional
Conforms to standard ISO 21287
Piston-rod end Female thread
Position detection Via proximity switch
Symbol 00991217
Variants Piston rod at one end
Operating pressure 0.06 MPa ... 1 MPa
Operating pressure 0.6 bar ... 10 bar
Mode of operation Double-acting
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Cleanroom class Class 6 according to ISO 14644-1
Ambient temperature -20 °C ... 80 °C
Impact energy in end positions 0.2 J
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke 141 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 188 N
Moving mass 29 g
Product weight 141 g
Type of mounting Either: With through-hole Via female thread With accessories
Pneumatic connection M5
Note on materials RoHS-compliant
Material collar screws Steel
Material cover Anodised wrought aluminium alloy
Material seals TPE-U(PUR)
Material piston rod High-alloy steel
Material cylinder barrel Smooth-anodised wrought aluminium alloy
Dimension 35.5 x 35.5 x 52.5mm
