Pneumatic Air Cylinder Double Acting Single Rod Single Acting Spring Return Extend SDA
- Model:
- SDA
- MOQ:
- 1
- Place of Origin:
- China

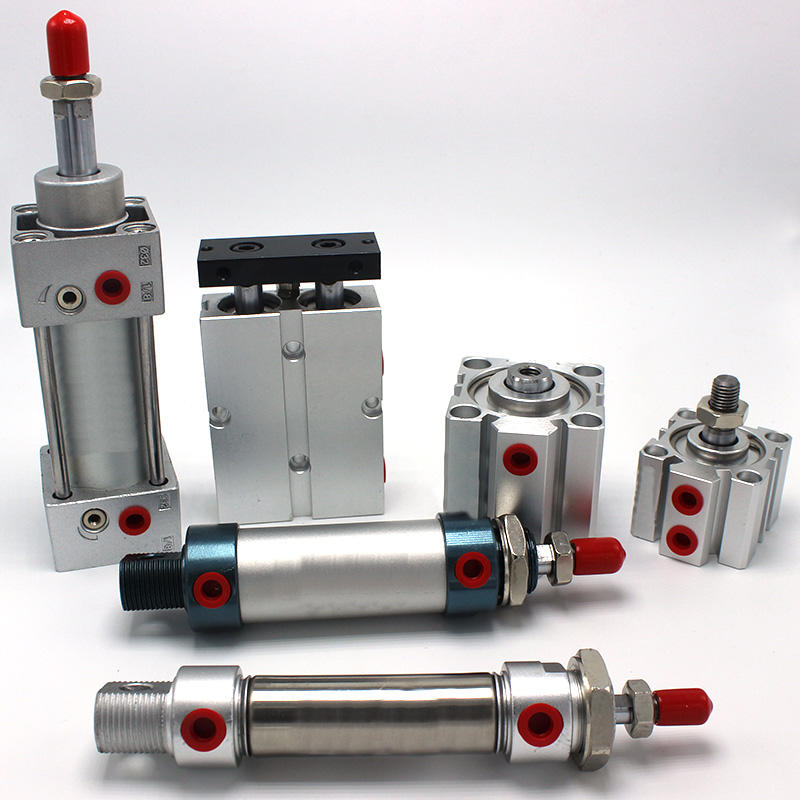

Various specifications of cylinder and cylinder mounting accessories are available for customers to choose.
Pneumatic Air Cylinder Double Acting Single Rod Single Acting Spring Return Extend SDA
1.Product Introduction of the Pneumatic Air Cylinder Double Acting
SDA series thin cylinder, compact and durable, easy to install.
2.Product Parameter（Specification）of the SDA series Pneumatic Air Cylinder Double Acting
| Bore size (mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | |
| Action | SDA | Double acting,single rod/double rod | |||||||||
| SSA/STA | single acting,spring return/extend | - | |||||||||
| Fluid | Filtered compressed air | ||||||||||
| Proof pressure | 1.5MPa | ||||||||||
| Operating pressure range | SDA | 0.1-0.9MPa | |||||||||
| SSA/STA | 0.2-0.9MPa | _ | |||||||||
| Ambient and fluid temperature | —10~70°C No freezing | ||||||||||
| Port size | M5*0.8 | Rc1/8 | Rc1/4 | Rc3/8 | |||||||
| Piston rod thread | Female thread | M5*0.5 | M4*0.7 | M5*0.8 | M6*1.0 | M8*1.25 | M10*1.5 | M14*1.5 | M18*1.5 | ||
| Male thread | M5*0.8 | M6*1.0 | M8*1.25 | M10*1.25 | M14*1.25 | M18*1.5 | M22*1.5 | M26*1.5 | |||

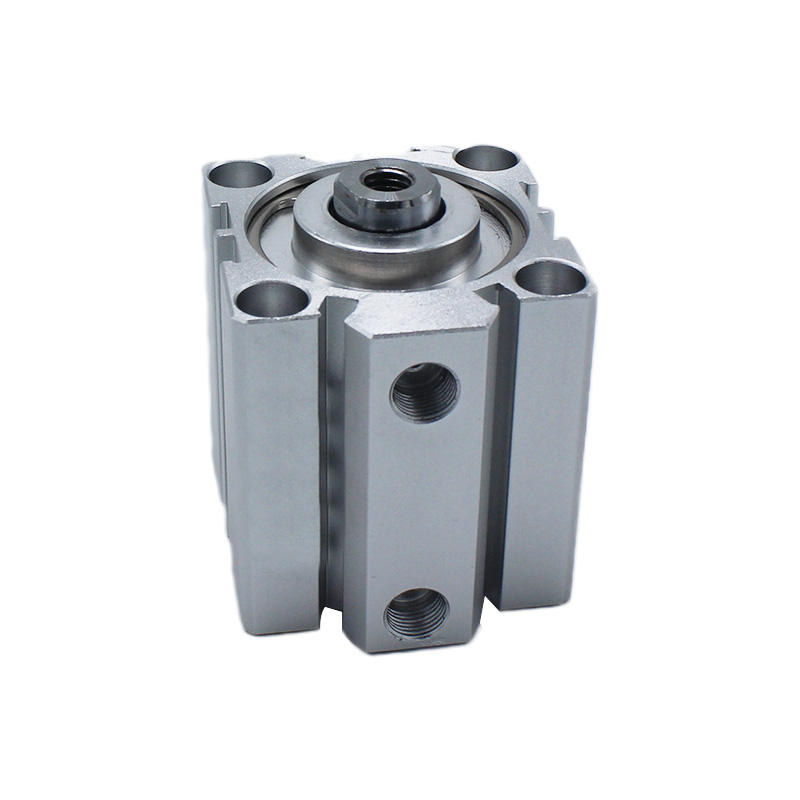

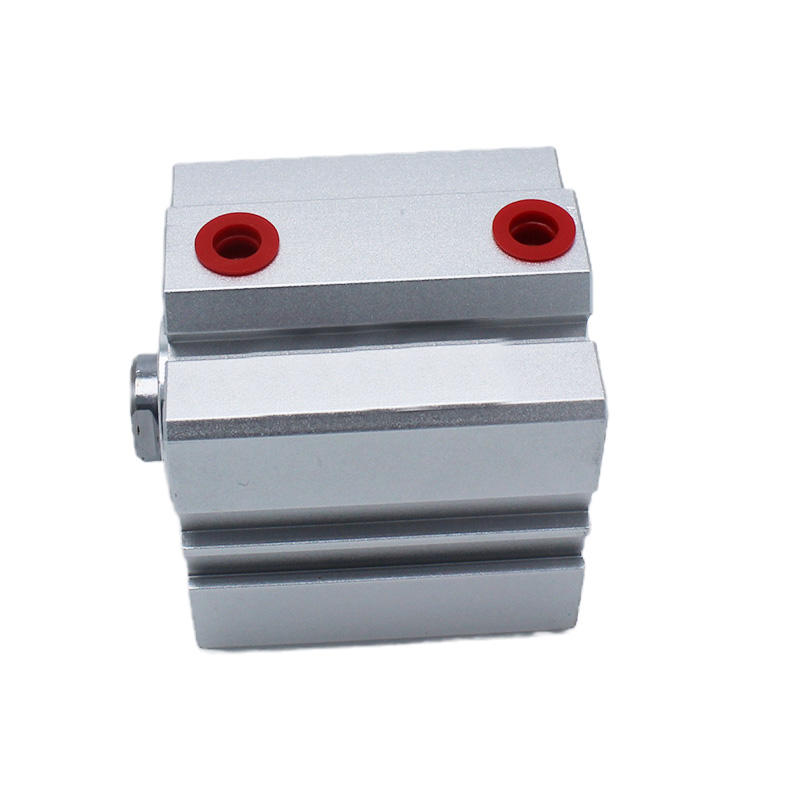

3. Production Details of the Pneumatic MA25*25 Stainless Steel Mini Cylinder
