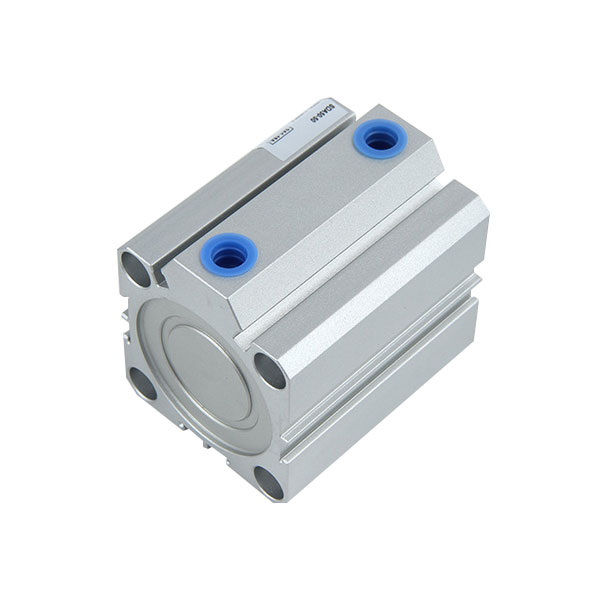

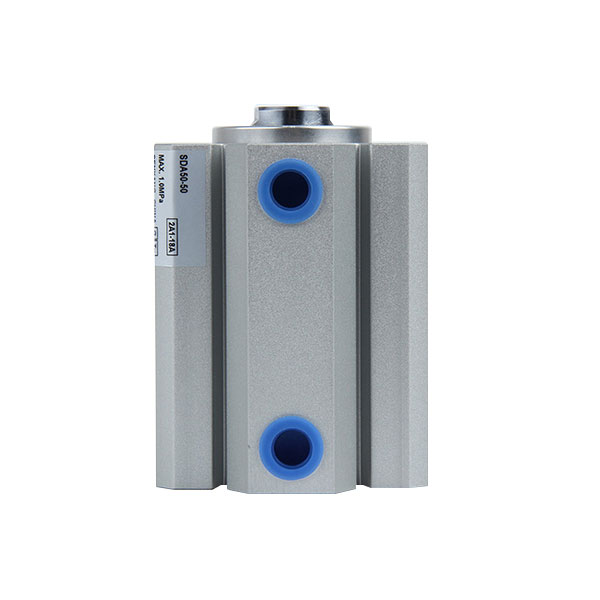

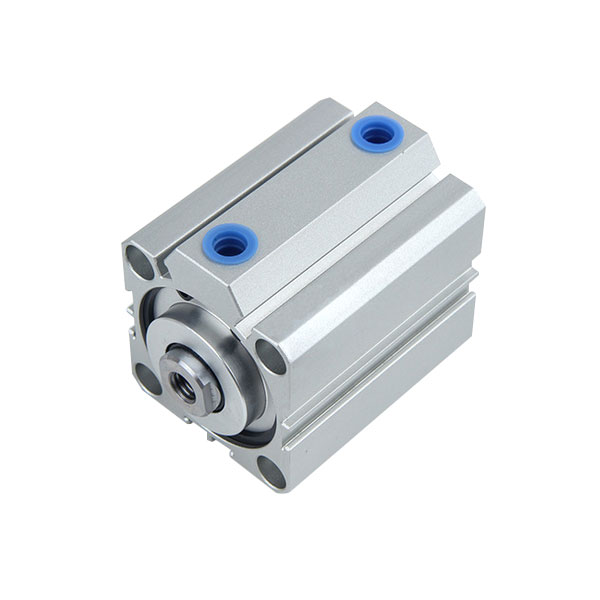

Compact Pneumatic Cylinder SDA
- Model:
- SDA Compact Air Cylinder series
- MOQ:
- 1
- Place of Origin:
- China
Overview for SDA Compact Air Cylinder
The inner diameter of SDA thin cylinder barrel is hard treated, wear-resistant and durable; The periphery of the cylinder body is provided with a slot for installing magnetic induction switches, convenient to install induction switch; There are various types of cylinders can be selected, such as double-acting type, single-acting return type, single-acting extend type, double-shaft double-acting type, double-shaft double-acting stroke adjustable type and other types.

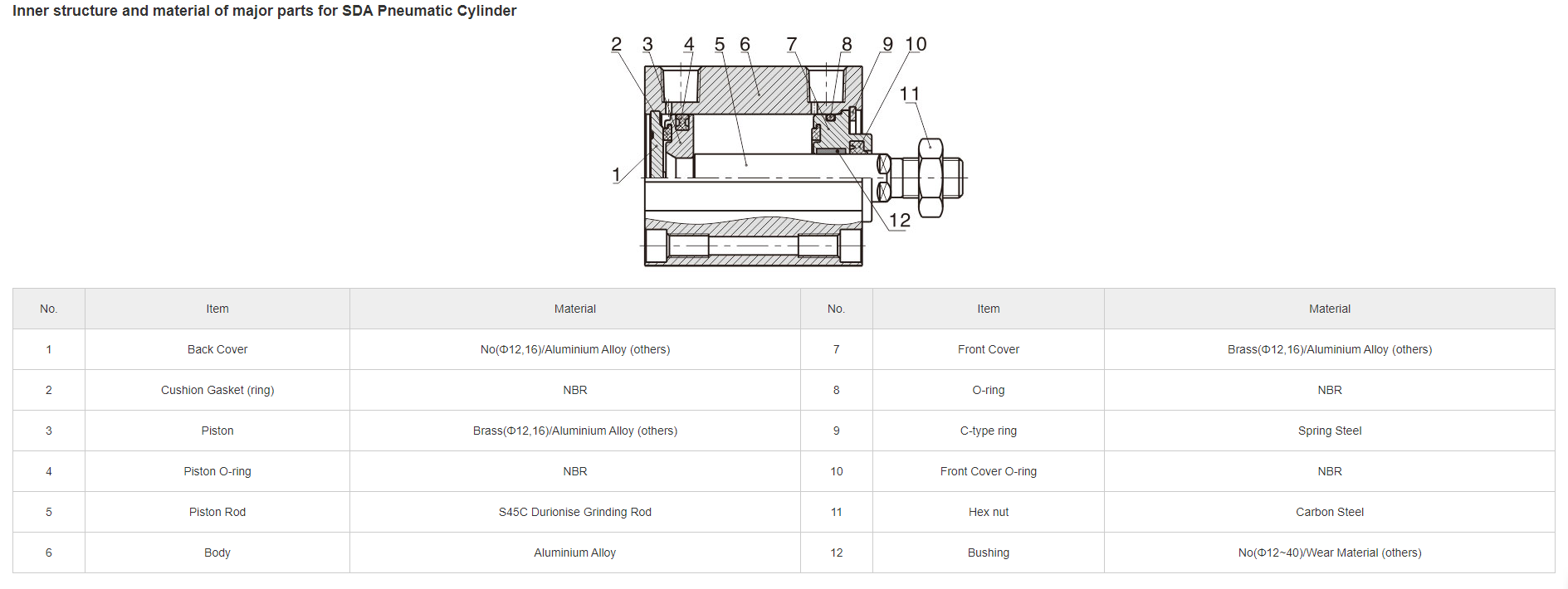

SDA Compact Air Cylinder is called ultra-thin cylinder because of its structure. The Compact Pneumatic Cylinder block and rear cover, piston and piston rod adopt riveting structure, makes the cylinder compact and reliable; Piston seal adopts special-shaped two-way sealing structure to make the cylinder compact and have oil storage function. This compact structure effectively saves installation space, so used in many mechanical equipments, such as: punch feeder, gear assembly machine, stamping manipulator, automatic tapping machine and automatic drilling machine, which shows that thin cylinders play a vital role in the components of automated machine.

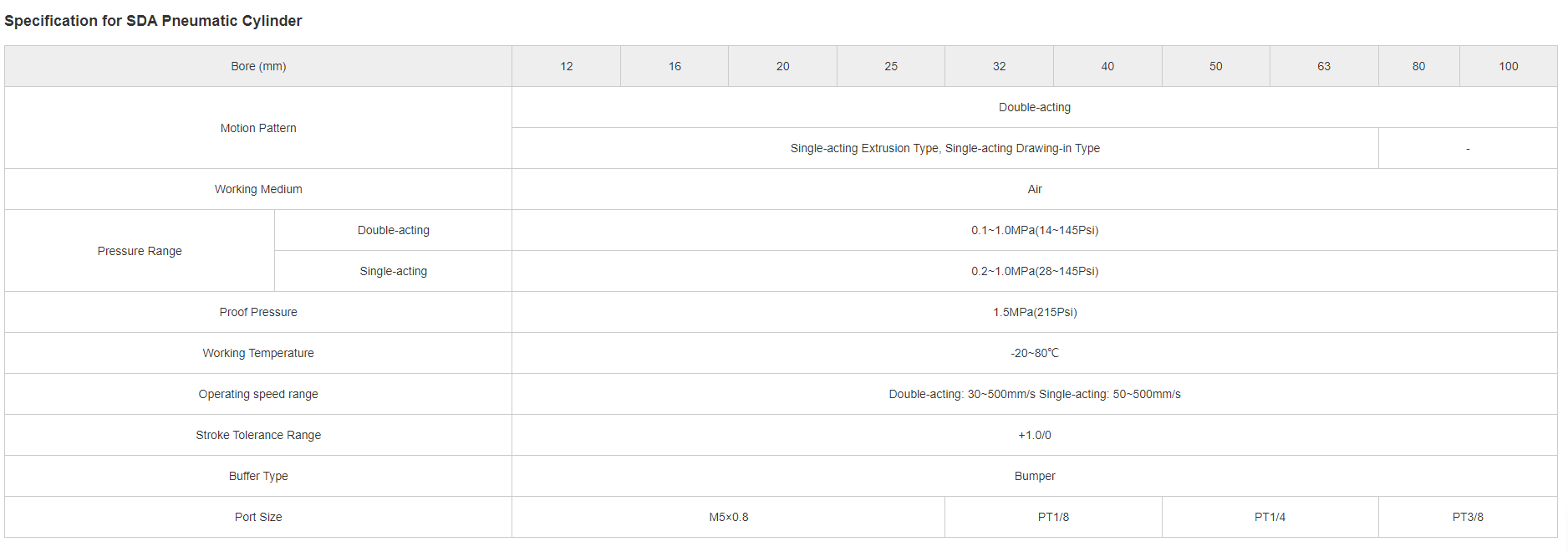

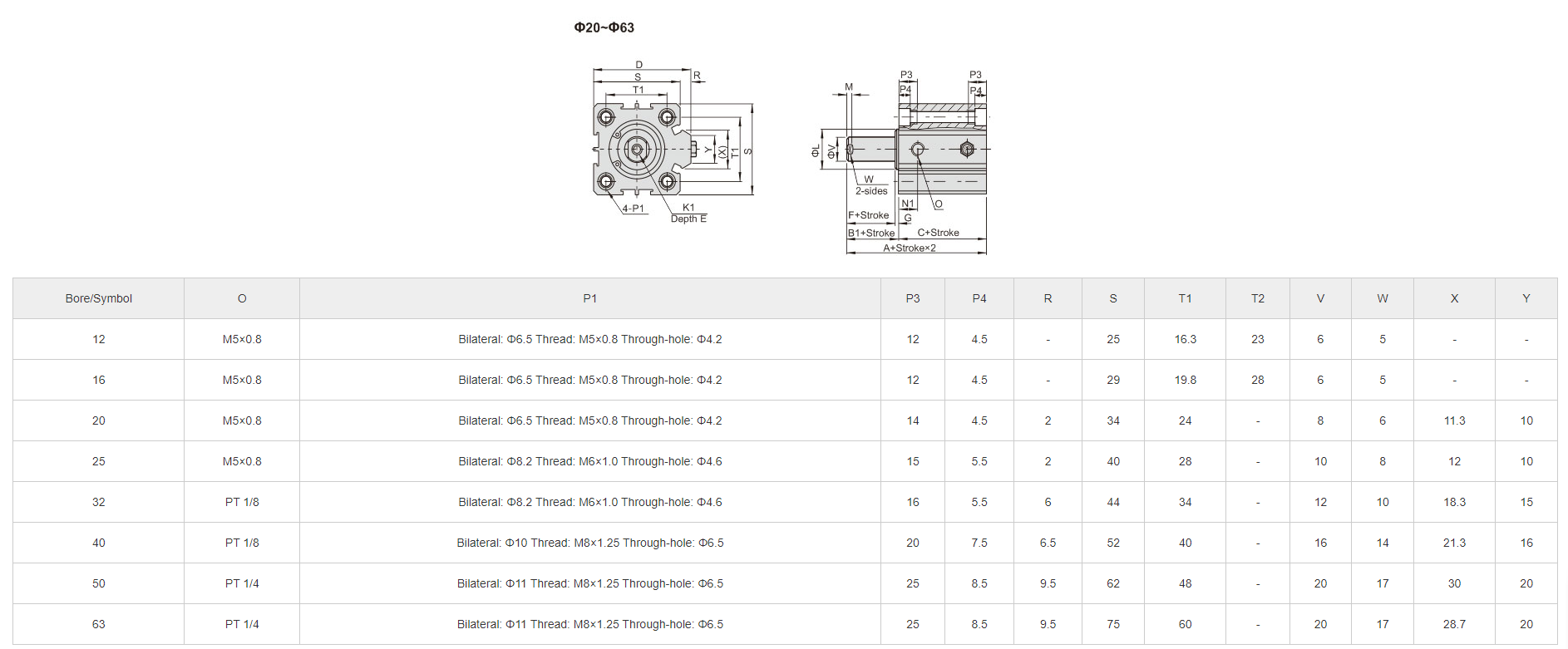

Technical Parameters for SDA Compact Air Cylinder
Bore Sizes: 12,16,20,25,32,40,50,63,80,100mm

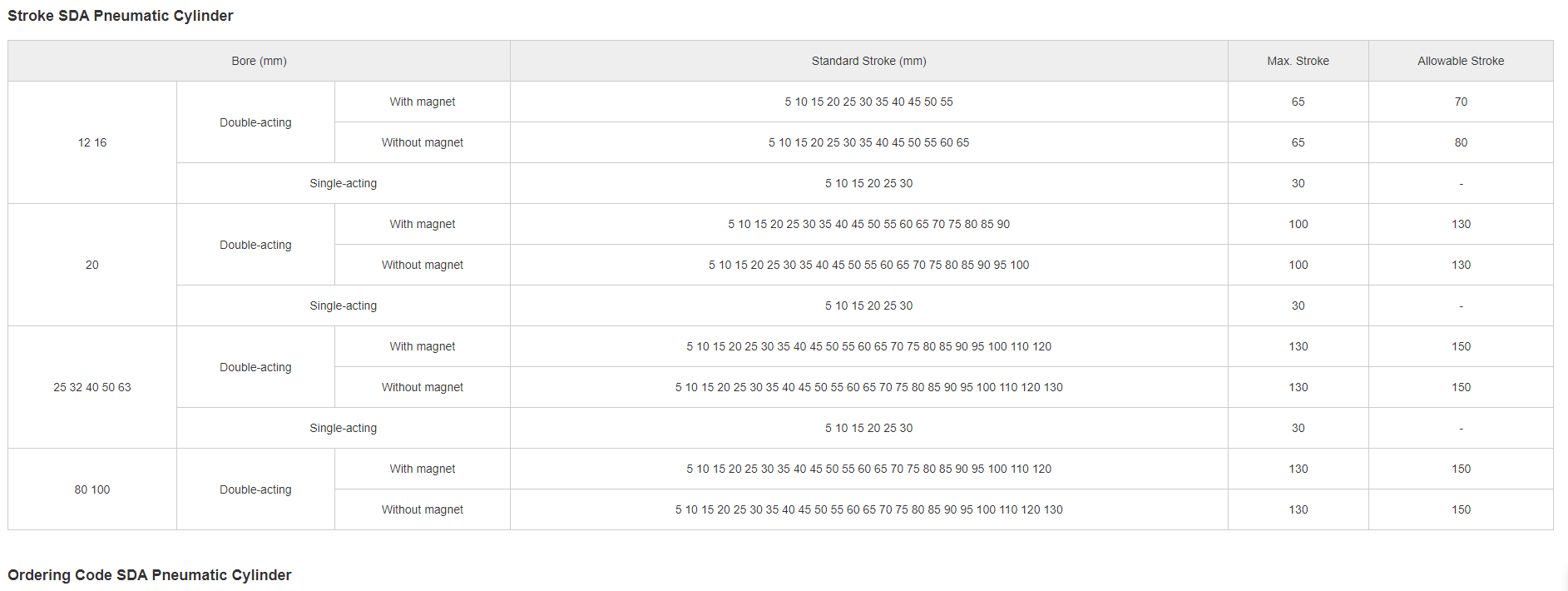

Stroke Lengths: 5,10,15,20,25,30,40,50,75,100,130mm
Operating Pressure: 0.2-0.9MPa Single action;0.1-0.9MPa Double action
Speed: Double action:30~500mm/s Single action:50~500mm/s
Working Environment Temperature: -10 to 80°C
