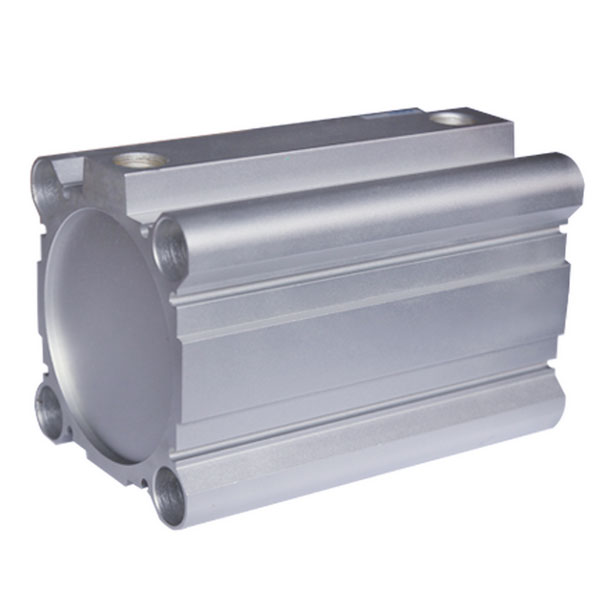

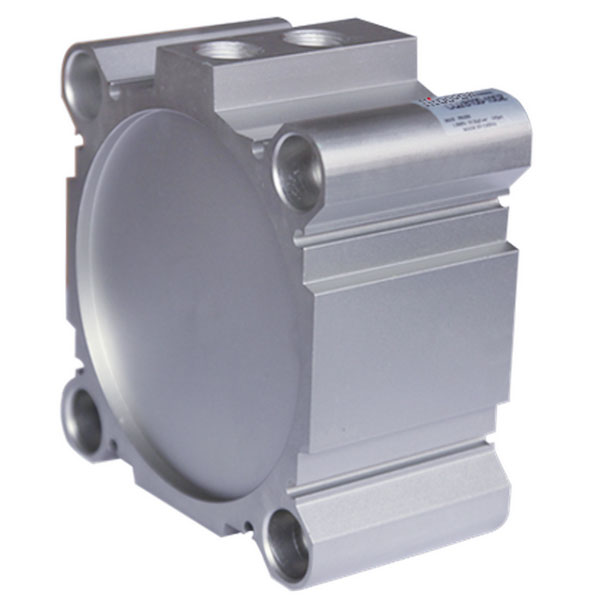

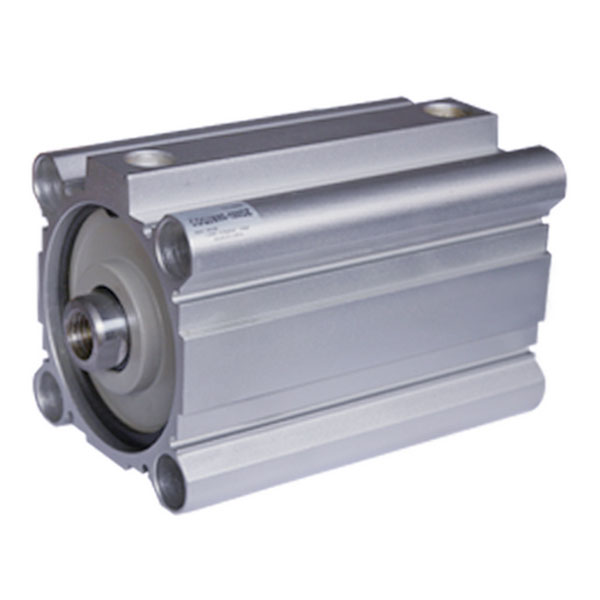

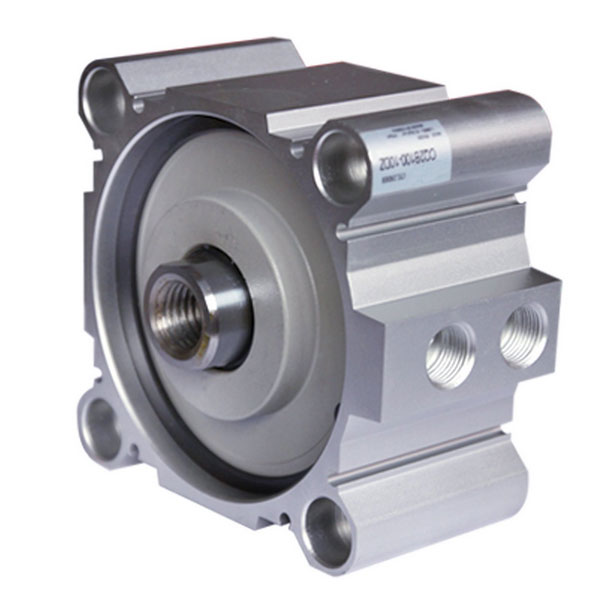

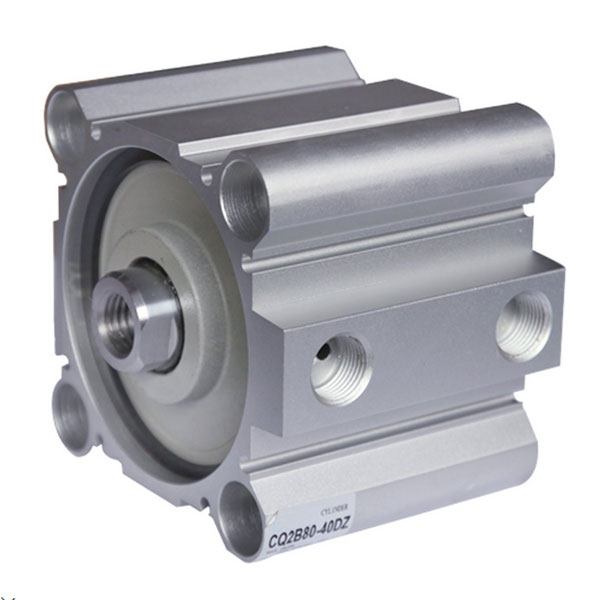

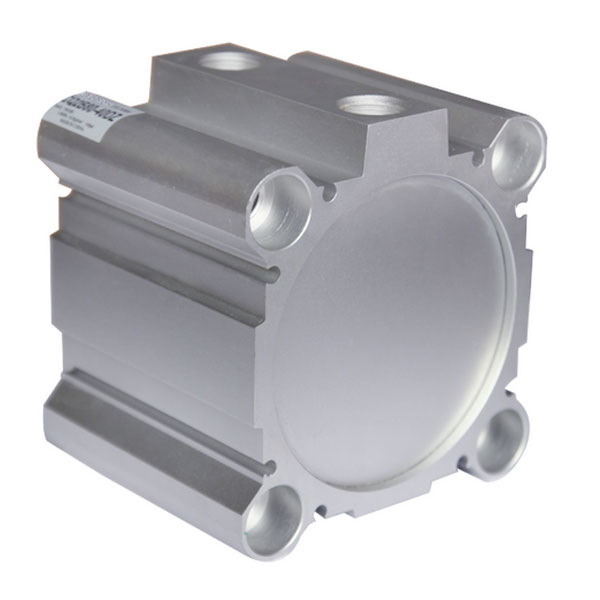

Compact Pneumatic Cylinder CQ2

CQ2 Compact Pneumatic Cylinder has the characteristics:

1. Compact Pneumatic Cylinder Compact structure, which can effectively save the installation space.
2. Thin and light: When maintaining the existing operation accuracy and product life, its full length is 1/2 to 1/3 of the general cylinder.
3. Easy to install: Use the embedded installation method to design, do not need to install any accessories to meet the requirements of existing space.
4. Easy to maintain: Design by simple assembly method, easy to install and disassemble and maintain.
5. Magnetic switch: The assembly groove is reserved outside the body, which makes the magnetic switch very simple in installation, fixation and installation position adjustment.
6. Scope of application: This cylinder is suitable for the conditions of limited installation space, short stroke and a certain clamping force.

CQ2 Compact Pneumatic Cylinder has the following advantages:

1. The cylinder surface is polished and oxidized to make the surface beautiful and improve corrosion resistance.
2. Respond quickly to pressure input; clamping force is large compared with its size; minimum installation space.
3. Built-in sensor grooves are suitable for contact or non-contact terminal sensing.
4. The cylinder block is made of high quality aluminum alloy profile. The inner wall is hard anodized, and the corrosion resistance and wear resistance are greatly improved.
5. The end cover is made of the whole aluminum alloy, which has excellent structural strength and sealing, and is polished and oxidized to make it beautiful in appearance and long in service life.
